Professional Bag-In-Box Aseptic Filling Machine manufacturer

Over 15 years of BIB Filling Machine design and manufacture experience
Top quality with a reasonable price
Supports on-site installation and on-site or remote commissioning
7X24 hours after-sales and technical support

Send Your Inquiry Today

EQUIPMENT INTRODUCTION

The BIB bag-in-box aseptic filling machine is a small bag aseptic packaging machine specially developed by our company for small packages below 50 liters in combination with Italian technology, which is mainly composed of an aseptic filling system, metering system, etc. It is specially used for the filling of 1-50L aseptic bags. The packaging bags are aluminum-plastic composite aseptic bags. The materials after sterilization are subject to such operations as cap opening, filling, and capping, which are completed by the mechanical hand in the aseptic room, so as to avoid environmental contamination and achieve the effect of aseptic filling. It is widely applied in such industries as fruit juice, jam, dairy, coffee, fruit wine, etc.

Send Your Inquiry Today

Main Features of Equipment

◆It is made of high quality SUS304 or 316L stainless steel except the motor, electrical appliance and soft connections.
◆Compared with traditional large barrel filling machines, it has such features as higher filling speed, more accurate measurement, more convenient operation, less material return flow and higher quality.
◆The filling volume can be freely set within 1-50L. It is suitable for bags of different sizes and volumes, making production more flexible.
◆Two metering systems are available for selection: weighing measurement or flow meter measurement, with accurate measurement.
◆ The movable joints of the material pipeline adopt a steam barrier protection device, and the filling room adopts steam sterilization to continuously maintain a sterile state to ensure the safety of filling;
◆ Equipped with condensate collection device to avoid condensate dripping;
◆ The design of the bag opening is reasonable, with accurate lid clamping and removal.The bag opening is not damaged, and the equipment runs smoothly.

Send Your Inquiry Today

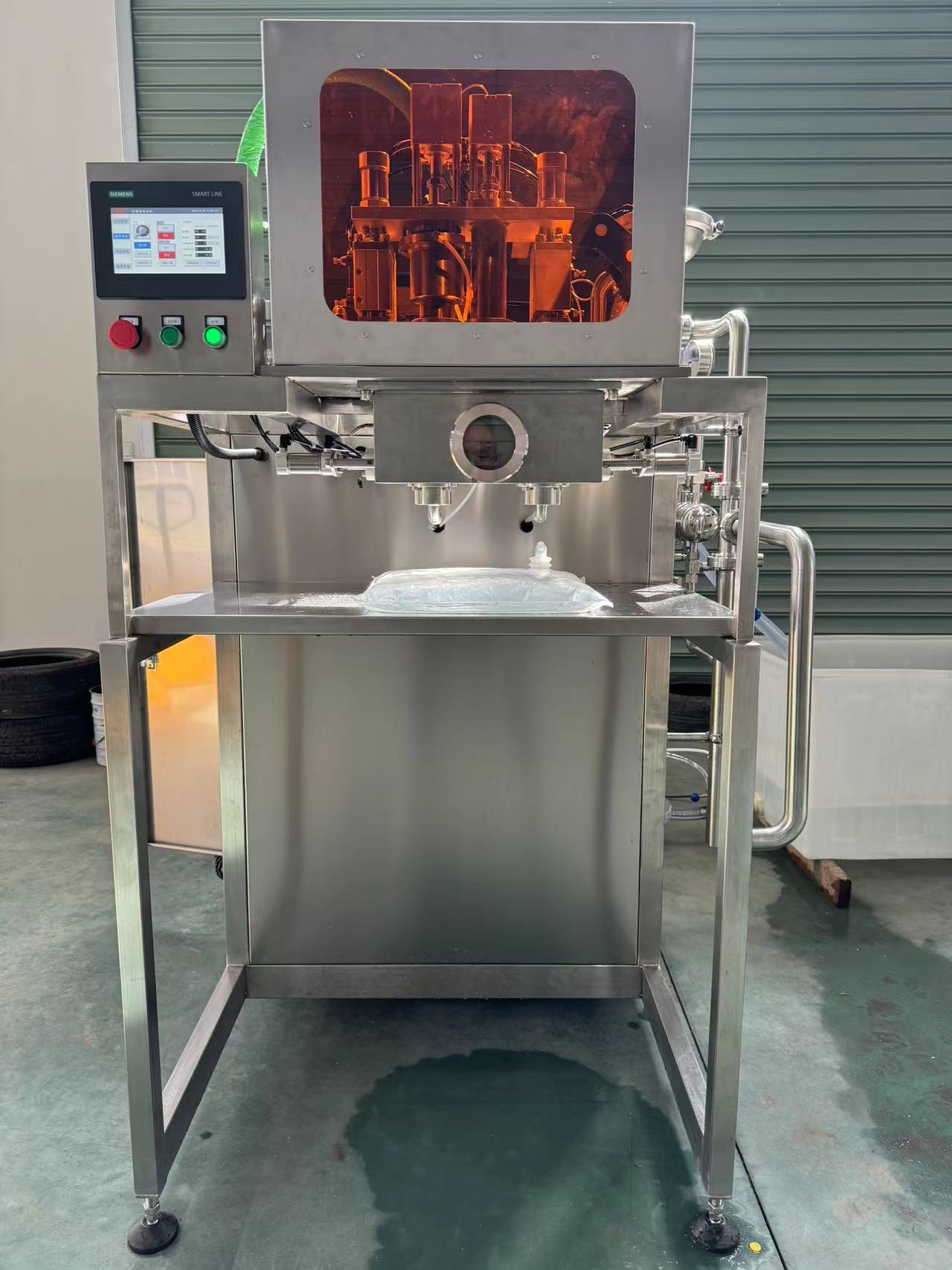

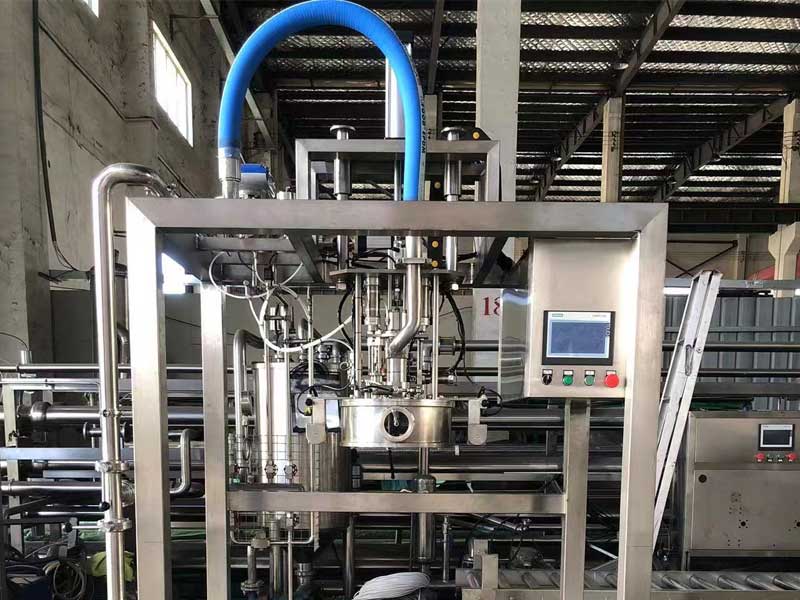

SINGLE HEAD BIB FILLING MACHINE

Equipment characteristics:
1. The product is a control system composed of a human-machine interface and PLC, which makes operation convenient and intuitive, and has self-detection and protection functions.
2. Two measurement systems are available: weighing measurement and electromagnetic flowmeter measurement.
3. The whole machine adopts SUS304 and all parts in contact with food are made of stainless steel 316L.
4. The box bag filling machine can be used for bags of different sizes and capacities, making product production more flexible.
5. Reliable bag opening design ensures smooth operation of the equipment without damaging the bag opening.

Send Your Inquiry Today

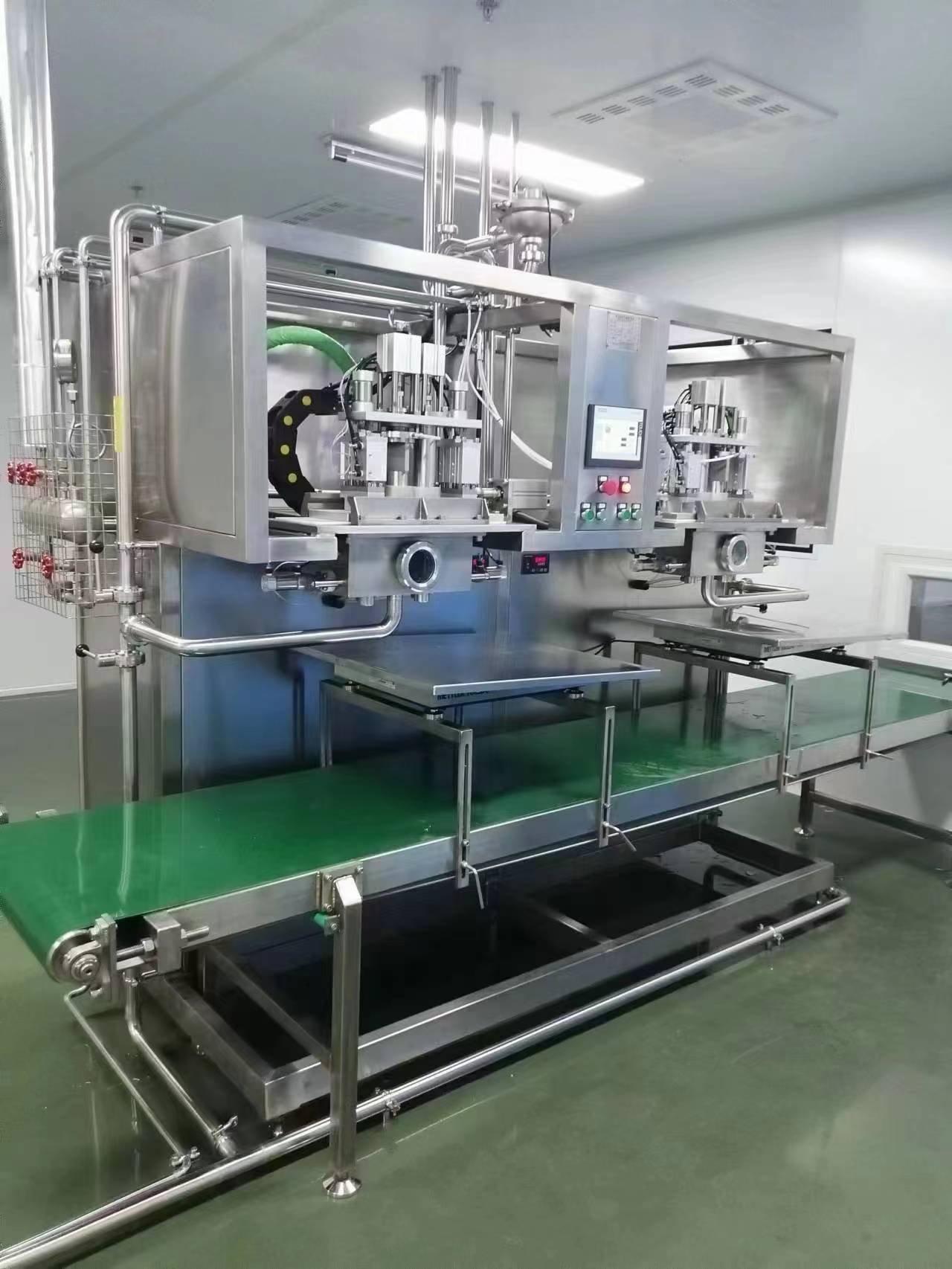

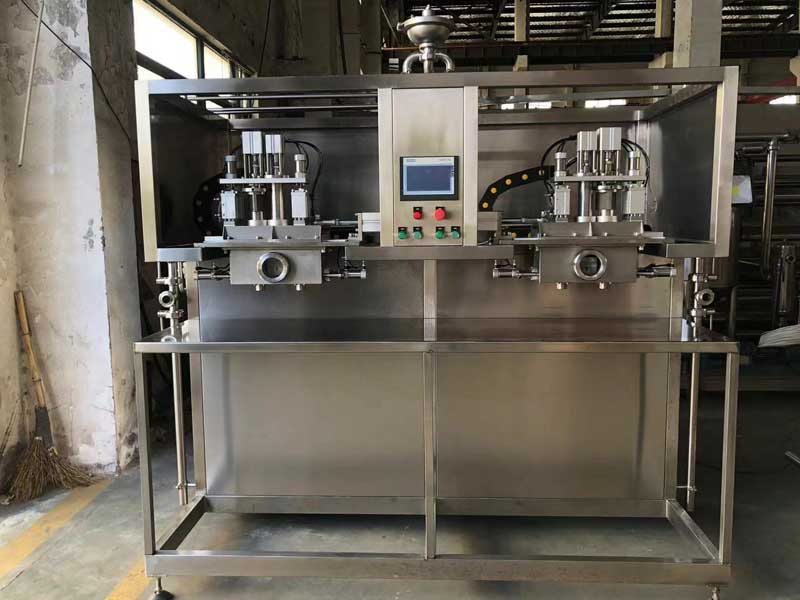

DOUBLE HEAD BIB FILLING MACHINE

Equipment characteristics
1. The dual-head sterile filling machine adopts alternating filling, effectively avoiding the loss of product color and taste caused by reflux and repeated sterilization.
2. Compared to two single-head sterile filling machines, it is easier to manage and maintain.
3. The equipment layout is more convenient and efficient, and the front-end pipeline system is saved.
4. The dual head filling machine can simultaneously fill two different capacities of bags.

Send Your Inquiry Today

Model	SINGLE HEAD BIB	DOUBLE HEAD BIB
Filling range	1-50L	1-50L
Maximum filling speed	250bags/hour(1L)	450bags/hour(1L)
	200bags/hour(2L)	380bags/hour(2L)
	150bags/hour(5L)	280bags/hour(5L)
	120bags/hour(10L)	220bags/hour(10L)
	100bags/hour(20L)	180bags/hour(20L)
Filing precision	99.5%	99.5%
Compressed air pressure	≥0.7MPa	≥0.7MPa
Compressed air consumption	10M3/H	20M3/H
Steam pressure	≥0.5 MPa	≥0.5 MPa
Steam consumption	20KG/H	40KG/H
Power	1KW	1.5KW
Dimension(LWH)	1300x1100x1800mm	2500x1100x1800mm

Why Choose VONFO BIB Filling Machine

Professional Team

A professional team with over 15 years of experience provides the most suitable BIB Filling Machine design and manufacturing process.
Reasonable Price and Top Quality

Provide factory direct sales prices based on the best quality to save your costs.
Timely after-sales and Technical Support

7X24 hours, technical and after-sales support from a professional team
Successful Cases

There are more than 100 sets of dairy and beverage project in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.
