Professional Double-effect/Multi-effect Falling Film Evaporator Manufacturer

Over 15 years of falling film evaporator design and manufacture experience
Top quality with reasonable price
Supports on-site installation and on-site or remote commissioning
7X24 hours after-sales and technical support

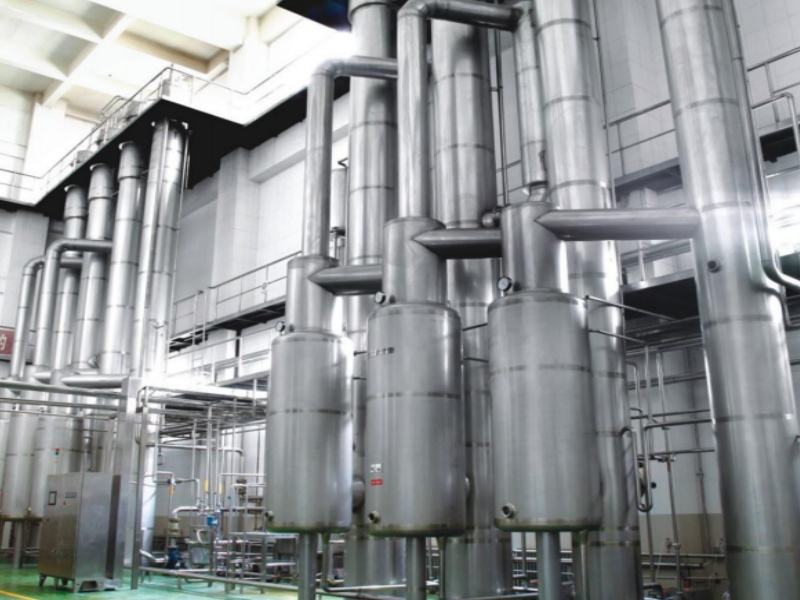

产品描述

Double-effect/Multi-effect Falling Film Evaporator

-Double-effect/multi-effect falling film evaporator is especially suitable for low temperature vacuum concentration of heat sensitive substances which can carry out continuous sterilization and concentration.
-Double-effect/multi-effect falling film evaporator has more features and benefits than the original one including: heat up time is short and evaporation temperature is low, which seldom affects the color, flavor or nutrient components of the products.

Double-effect/Multi-effect Falling Film Evaporator Structure

-All parts contacting with materials, secondary steam and condensed water are made of high-quality stainless steel, which meets to GMP standard.
-The heater and evaporator are provided with heat preservation structure covered by stainless sheet with its surface mirror-polished or matte-treated.
-The heating chamber with ground structure, beautiful exterior.and easy to install,operate and repair.
-Advanced structure insure the vacuum degree of working system is stable.
-Equipped with CIP system, the device can be cleaned completely without disassembly.And it is easy to operate and maintain.

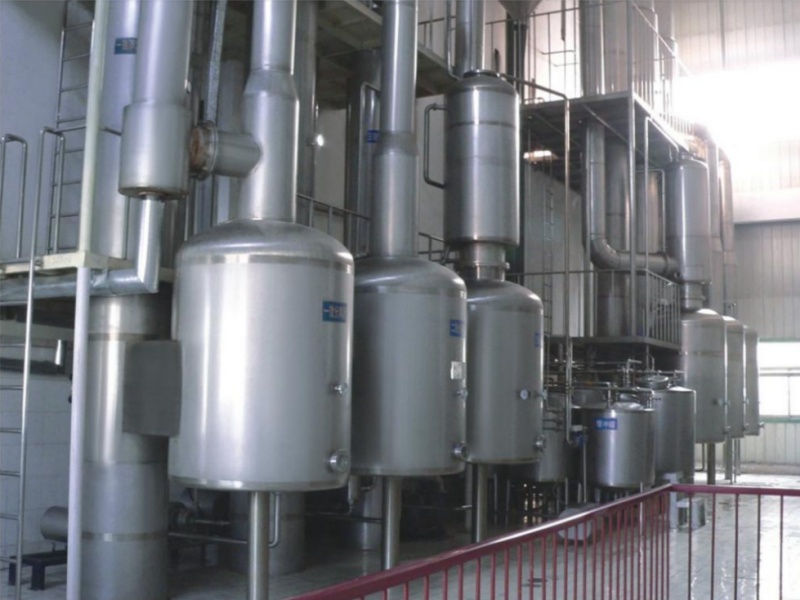

产品结构

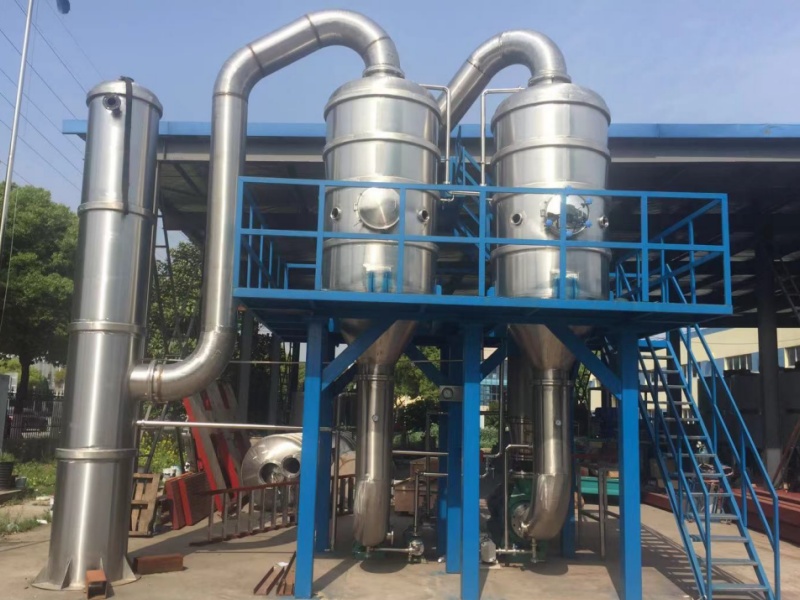

产品特点

Double-effect/Multi-effect Falling Film Evaporator Features

-Multiple functions:
Boiler can reclaim materials repetitively with the circulation of first effect, second effect and third effect. Materials can be fed into for concentration continuously or at intervals.
-Water ring pump is used to pump vacuum. The pump is featured by high vacuum degree, low consumption of water and power supply, small space, good working environment and low noise.
-The advanced design not only prevent back flow leading to repeat heating of material, but also avoid burnt material sticking to inner side of pipe.
-Advanced hot pressure pump is used. Its steam pressure (gauge pressure) is 0.8MPa, and the extraction coefficient is 0.98, Therefore. The steam consumption and noise is low.

Double-effect/Multi-effect Falling Film Evaporator Advantage

-According to customer requirements, automatic control system of discharge concentration, sterilization temperature and level of balancing tank,as well as ice water refrigeration system can be configured.
-The Double-effect/multi-effect falling film evaporator has a special structure which make concentrated material thick and even.
The materials can be concentrated in sealed status without any bubbles, so material loss and pollution are reduced greatly.
-The materials will be concentrated in the day which will not agglomerate, also easy from cleaning(only need open the top cover or bottom cover),which save the labor,one person is enough for cleaning.

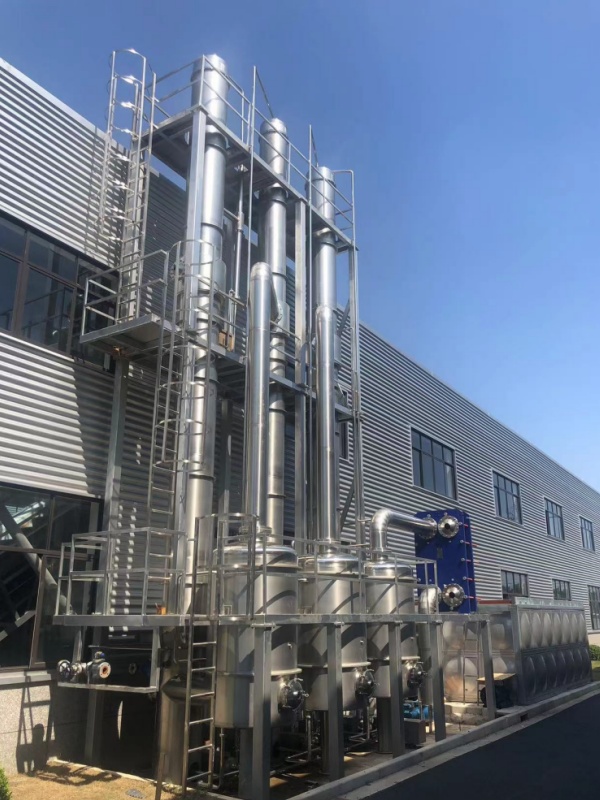

产品优势
Main Technical Parameters
Model WAFCNS-30 WAFCNS-600 WAFCNS-700 WAFCNS-1250 WAFCNS-2000 WAFCNS-2500 WAFCNS-3000 WAFCNS-3200 WAFCNS-5000 WAFCNS-6400 WAFCNS-8000 WAFCNS-10000
Moisture evaporation(kg/h) 30 600 700 1250 2000 2500 3000 3200 5000 6400 8000 10000
Material disposal quantity 40 800 940 1680 2688 3360 4032 4300 6720 8500 1100 13800
Inlet material strength(%) ≥11.5 ≥11.5 ≥11.5 ≥11.5 ≥11.5 ≥11.5 ≥11.5 ≥11.5 ≥11.5 ≥11.5 ≥11.5 ≥11.5
Outlet material strength (%) 45-48 45-48 45-48 45-48 45-48 45-48 45-48 45-48 45-48 45-48 45-48 45-48
First effect evaporation temperature(℃) 68-72 68-72 68-72 68-72 68-72 68-72 68-72 68-72 68-72 68-72 68-72 68-72
Second effect evaporation temperature(℃)     45-52 45-52 45-52 45-52 45-52 55-60 55-60 55-60 55-64 55-60
Third effect evaporation temperature(℃)               44-48 44-48 44-48 44-48 44-48
Fourth effect evaporation temperature (℃) 17 410 280 500 800 1000 1200 900 1400 1700 1760 3080
Steam consumption (kg/h) 17 7.2 9   14 18 21 20 32 40 32 55
Cooling water consumption (16℃ inlet,40℃ outlet) 5 9 14.2 15 18 24.5 28 31 44.4 45 60 83
Outline dimensions(m) 3x1.5x4.8 5x2x8 5x2.5x8.5 5.5x3x8.5 5.5x3x8.5 5.5x4x11 5x3.5x11 6.5x4x11 7.3x4x12 7.3x4x12 9.3x4x12 11.5x5x13.5

Why Choose VONFO Double-effect/Multi-effect Falling Film Evaporator

  • Professional team
    A professional team with over 15 years of experience provides the most suitable falling film evaporator design and manufacturing process.​​​​​​​
  • Reasonable price and top quality​​​​​​​
    Provide factory dProvide factory direct sales prices based on the best quality to save your costs.irect sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and technical support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful cases​​​​​​​
    There are more than 400 sets evaporators in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​

Double-effect/Multi-effect Falling Film Evaporator Application

-Fruit and vegetable juice engineering
Produce low viscosity heat-sensitive concentrated fruit juice
-Milk and dairy engineering
Milk concentration and condensed milk production
-Syrup engineering
Produce thicker syrup by Concentrate the sugar solution
-Other Liquid food and beverage engineering
Coffee extract, tea extract, plant extract, glucose, starch,Chinese medicine,Western medicine, monosodium glutamate, and chemical industry,etc.
产品应用 图片
Logo

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable falling film evaporator?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design Single-effect falling film evaporator suitable for your product.
  • Can I choose electric heating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Depending on how much power is consumed. Excessive power consumption will significantly increase investment in power facilities.
  • Can I choose the different configuration on the Single-effect falling film evaporator? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 60 days for Single-effect falling film evaporator.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
  • Can I choose the material of the Single-effect falling film evaporator?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, , etc.
