Forced circulating evaporator

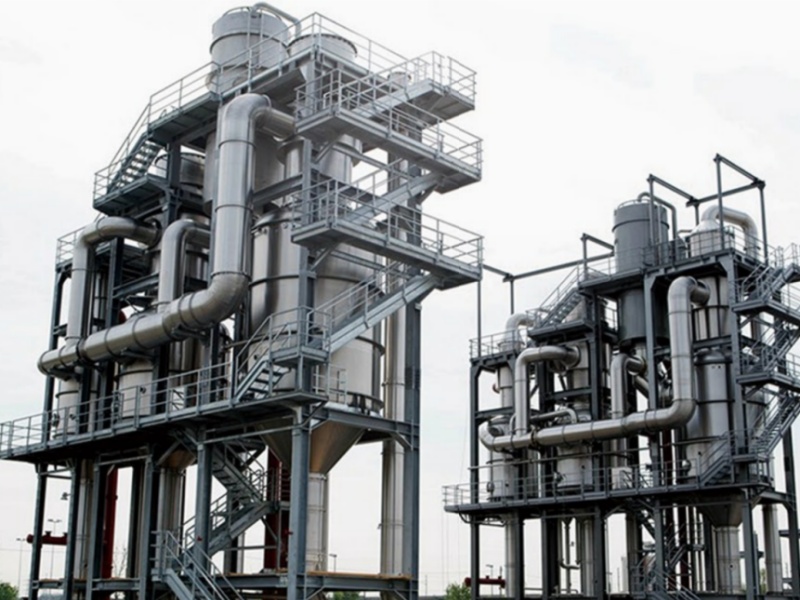

Forced Circulating Evaporator

-Forced circulating evaporator capacity:150-1500Tons/Day
-Made of SS304 or SS316,machine frame use carbon steel
-The forced circulation evaporator is used for concentrating products(after crushing &beating) with high levels of solid material content and/or high viscosity such as :
tomato, onion, chili, strawberry, blackberry, carrot,peach,and apricot,etc.
-The forced circulation evaporator function:
Removing water from raw fruit juice/puree and concentrated into high-solid and viscosity products

Forced Circulating Evaporator Composition

Forced circulating evaporator including :
-Multi-effect heater exchangers,
-Separators
-Condensers
-Pumps,such as feeding pump,l discharge pump,circulation pump
-Vacuum system
-Control system
-All valves and pipeline

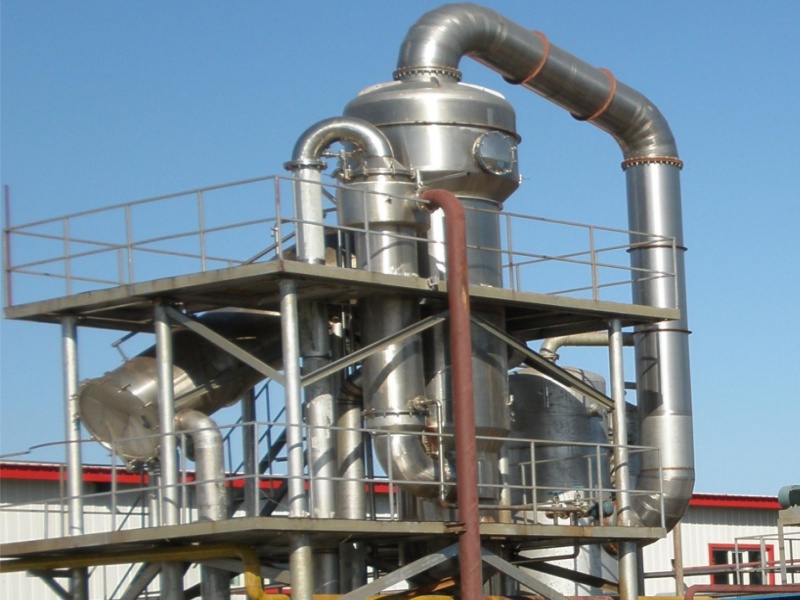

Forced circulating evaporator composition
产品结构特点

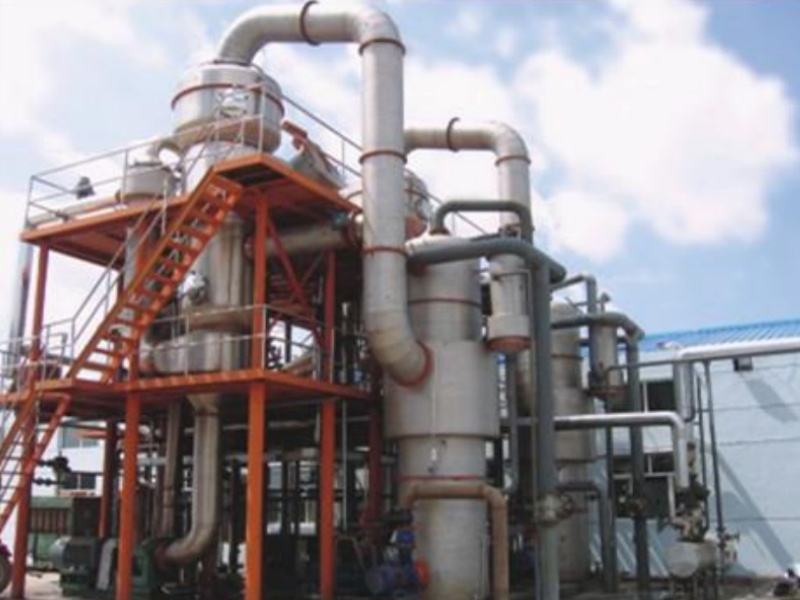

Forced Circulating Evaporator Structural Features

- The evaporator adopts abroad low consumption evaporating structure:
the second effect self-circulation combines the first effect forced circulation,so it is double effect combination structure which decrease the running cost of the second forced circulation pump and other loss.
-Compact structure and optimized layout, short pipe length between the first effect evaporator and the second effect evaporator,can reduce the loss of heat resource
-The draining of cooling system uses frequency conversion to adjust water level of the condenser to save power.
Main technical parameters
Capacity     (ton/day) Evaporating capacity(kg/h) Electricity consumption(kw/h) Water consumption(t/h) Steam consumption(kg/h)
150 5300 105 150 2120
300 10560 190 300 4300
400 13800 197 400 5600
500 17280 205 500 7200
600 20700 380 600 8300
800 27600 394 800 11500
1000 34560 410 1000 14000
1200 41400 591 1200 17000
1500 51840 615 1500 23800

Why Choose VONFO Forced Circulating Evaporator

  • Professional team
    A professional team with over 15 years of experience provides the most suitable evaporator design and manufacturing process.​​​​​​​
  • Reasonable price and top quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and technical support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful cases​​​​​​​
    There are more than 400 sets evaporators in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​

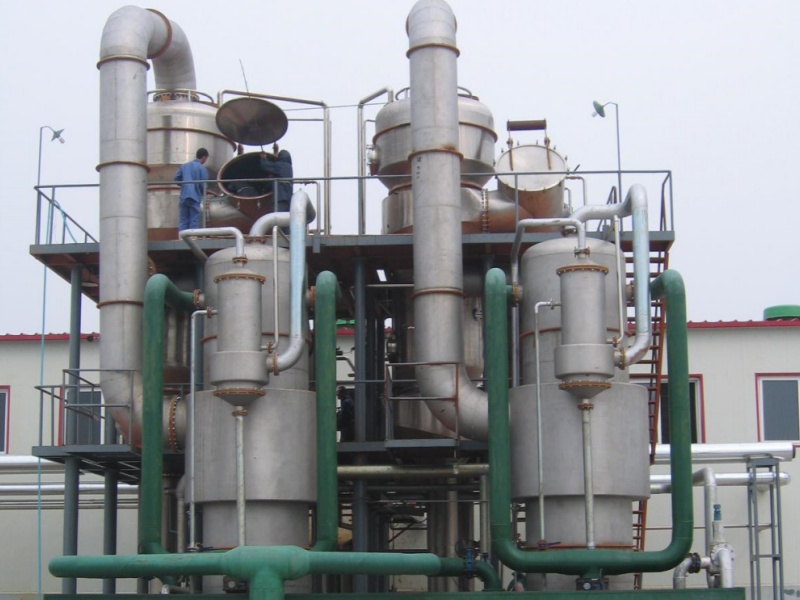

Forced Circulating Evaporator Advantage

- The double effect combination structure can save power by 250KW/H compared with domestic equipment (capacity at 300-500tons per day)
-The evaporating way adopts the rising film and falling film both, so the effect of heat transfer is better, the pressure of the steam is low, the temperature of material is low too.
- Temperature of the first effect only is 68℃~70℃ and 38℃~40℃ for the second effect.
-To avoid the damage of impact vibration when the water goes to the pump, the water supply adopts vacuum self-priming way which also reduce the power consumption.
产品优势
Logo

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable Forced circulating evaporator?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design Single-effect falling film evaporator suitable for your product.
  • Can I choose the different configuration on the Forced circulating evaporator? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 60 days for Single-effect falling film evaporator.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
  • Can I choose the material of the Forced circulating evaporator?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, , etc.
