Professional Liquifier Manufacturer

Over 15 years of Emulsification Tank/liquifier design and manufacture experience
Top quality with reasonable price
Supports on-site installation and remote guided installation
7X24 hours after-sales and technical support
VONFO Liquifier Types

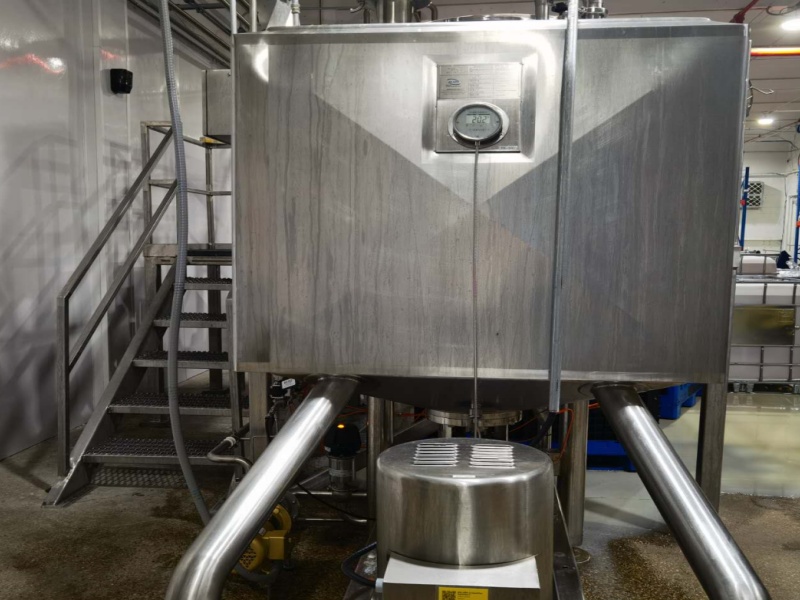

emulsification tank

Stainless Steel High Speed/High Shear Emulsification Tank

-Made of SUS304/16L food-grade material
-There are two types of emulsification tank/liquifier:
bottom high shear type and top high shear type
-One or more agitators can be mounted on the tank
-Can be designed as single layer, double layers or three layers.
-Tank heating method: electric heating or steam heating.

Water Powder Mixer/Tri-blender

-The water powder mixer is a batching machine that has various functions such as dissolving,mixing,stirring, dispersing, homogenizing and emulsification
-The water powder mixer widely used for dissolving thickeners stabilizers and emulsifiers CMC starch.colloid, milk powder, fruit powder tea powder mat extract into concentrations in Liquid food and beverage processing plant.
Capacity range: 1T-15T/H

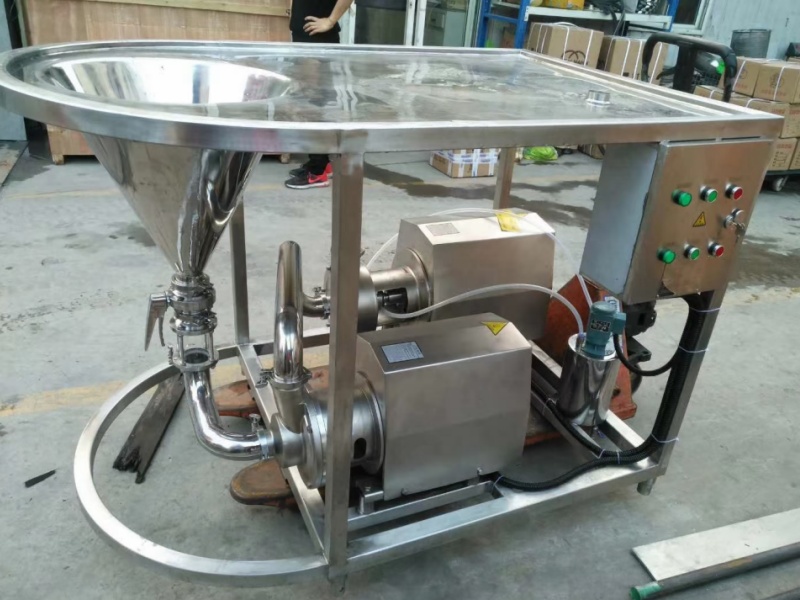

Water powder mixer
High Speed/High Shear Emulsification Tank  Main Technical Parameters
Specification (tank volume)(L) 400 600 800 1000 2000 3000
Shearing power(kw) 7.5 11 15 18.5 22 30
Shearing rotation speed(rpm) 2900 2900 2900 2930 2930 1480
Disposal quantity(L/h) 1000 2000 3000 5000 8000 12000
Tank form Single-layer, heat preservation and three-jacket can be made according to customer requirements.

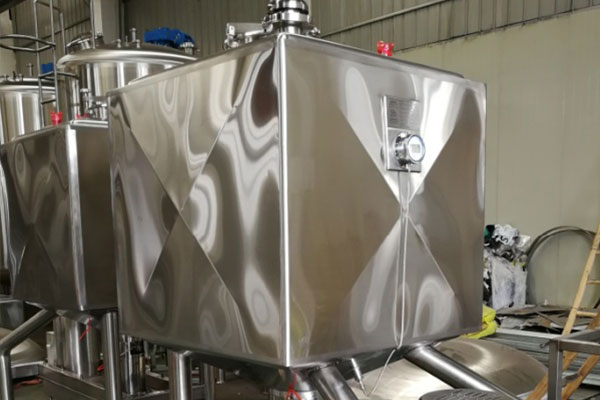

emulsifier tank

Structure Characteristics

1.Made of SUS304/16L food-grade material
2.There are two types of emulsification tank / liquifier: bottom high shear type and top high shear type
3. One or more agitators can be mounted on the tank
4.Can be designed as single layer, double layers or three layers.
5.Tank heating method: electric heating or steam heating.

Configuration of Emulsification Tank

Standard volume: 500L-3000L
High speed and high shear emulsifier / liquifier
Quick open manhole.
Various types of CIP cleaners .
Fly and insect resistant breathing cover.
Adjustable legs or skirt-base bottom
Dismountable materials input pipe assembly.
Thermometer
Sanitary sample valve
Liquid level meter and level controller
Eddy-proof board.
3

Why Choose VONFO Liquifier

  • Professional team
    A professional team with over 20 years of experience provides the most suitable high shear emulsification tank/liquifier design and manufacturing process.​​​​​​​
  • Reasonable price and top quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and technical support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful cases​​​​​​​
    There are more than 500 sets high speed emulsification tank/liquifier in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​
1

Application of Emulsification Tank

For high shear emulsification tank/liquifier
Dairy engineering
Food and beverage engineering
Fruit and vegetable juice engineering
Beer engineering.
Fine chemical engineering
Pharmaceutical engineering

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)
Logo

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable high shear emulsification tank/liquifier?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design the tank which suitable for your product.
  • Can your factory produce Liquifier according to our drawings or samples?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, of course we can
  • What's the MOQ for high shear emulsification tank?
    加 Created with Sketch.
    形状 Created with Sketch.
    Normally MOQ will be 1 pcs.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 30-60 days after have agreement for the drawing of high shear emulsification tank.
  • How to install and debug the high shear emulsification tank/Liquifier?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video
  • Can I choose the material of the high shear emulsification tank/Liquifier?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, titanium alloy, etc.
