Professional Pasteurization Machine Manufacturer

Over 20 years of pasteurizer design and manufacture experience
Top quality with reasonable price
Supports on-site installation and on-site or remote commissioning
7X24 hours after-sales and technical support
Choosing us means choosing professionalism, reliability, and trust. We promise to provide you with the highest quality pasteurization machine solution, making your food production safer and more efficient.

VONFO Pasteurizer Types

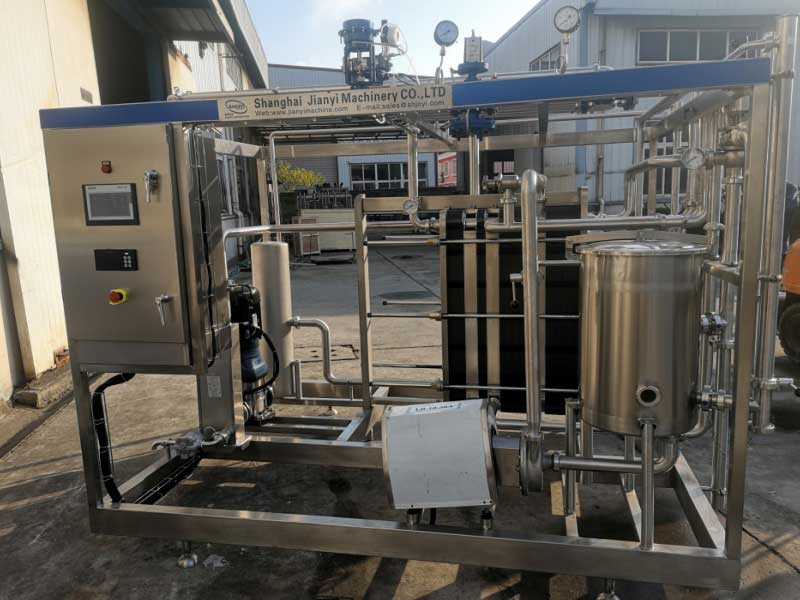

Pasteurizer(PUT)
Plate Pasteurization Machine
Production capacity: 500~20000L/H （Starting from 5 units under 200 gallons）
Sterilizing temperature: 85~130℃ (Adjustable)
Holding time: 15~30 s (Adjustable)
Control method: semi-automatic control, full-automatic control

Plate pasteurizer main composition:
The hot water system, plate heat exchanger, material feeding system, control system, pipelines, and valves
Plate pasteurizer design：
Our plate-type pasteurization machine is available for sale, with reliable equipment quality and excellent performance. Whether it's building a new production line or replacing old equipment, we can provide you with satisfactory solutions.
Tubular Pasteurization Machine
Production capacity: 500~20000L/H （Starting from 5 units under 200 gallons）
Sterilizing temperature: 85~140℃ (Adjustable)
Holding time: 15~30 s (Adjustable)
Control method: semi-automatic control, full-automatic control

Tubular pasteurizer main composition:
The hot water system, tube heat exchanger, material feeding system, control system, pipelines, and valves.
Tubular pasteurizer design：
Our tubular-type pasteurization machine is available for sale, with reliable equipment quality and excellent performance. Whether it's building a new production line or replacing old equipment, we can provide you with satisfactory solutions.

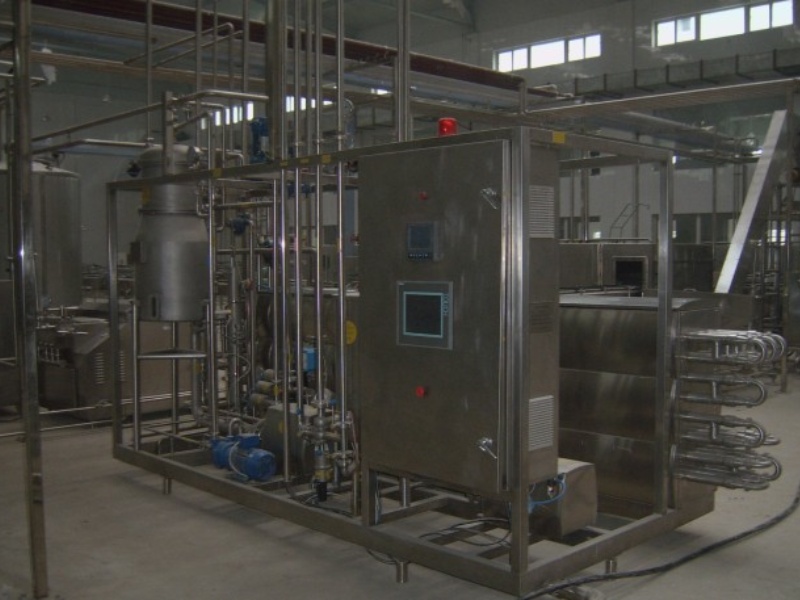

tubular pasteurizer-2
Main Technical Parameters
Name Vonfo-PUT-8B Vonfo-PUT-13B Vonfo-PUT-20B Vonfo-PUT-24B Vonfo-PUT-28B Vonfo-PUT-52B
Production capacity(t/h) 1 2 3 4 5 10
Heat exchanging area (m²) 8 13 20 24 28 52
Temperature of material inlet(℃) 5 5 5 5 5 5
Temperature of material outlet (℃) 5 5 5 5 5 5
Sterilizing temperature (℃) 85-95 85-95 85-95 85-95 85-95 85-95
Heat preservation time (S) 15~30 15~30 15~30 15~30 25 25
Ice water temperature(℃) 1 1 1 1 1 1
Ice water consumption(Times of materials) 3 3 3 3 3 3
Cooling water consumption(Times of materials) 2 2 2 2 2 2
Energy consumption (KW) 3 3 4 4 6 10
Interface size (mm) φ25 φ38 φ38 φ38 φ51 φ51
Outline dimensions (mm) 1500x1500x2000 2200x2000x2500 2200x2000x2500 2400x2000x2500 2400x2000x2500 2800x2000x2500

Why Choose VONFO Plate Pasteurizer

  • Professional team
    A professional team with over 20 years of experience provides the most suitable pasteurizer design and manufacturing process.​​​​​​​
  • Reasonable price and top quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and technical support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful cases​​​​​​​
    There are more than 400 pasteurizer in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​

Pasteurizer Advantage

  • High heat recovery, energy saving, and consumption reduction
  • Main control components are all famous brands:
    SIMENS(PLC),SCHNEIDER(Electrical parts),SpiraxSarco(steam valve),etc
  • Compact structure, stable performance and simple operation low maintenance cost, long service life
  • Easy to clean, equipped with ClP system which can clean the machine and pipes automatically

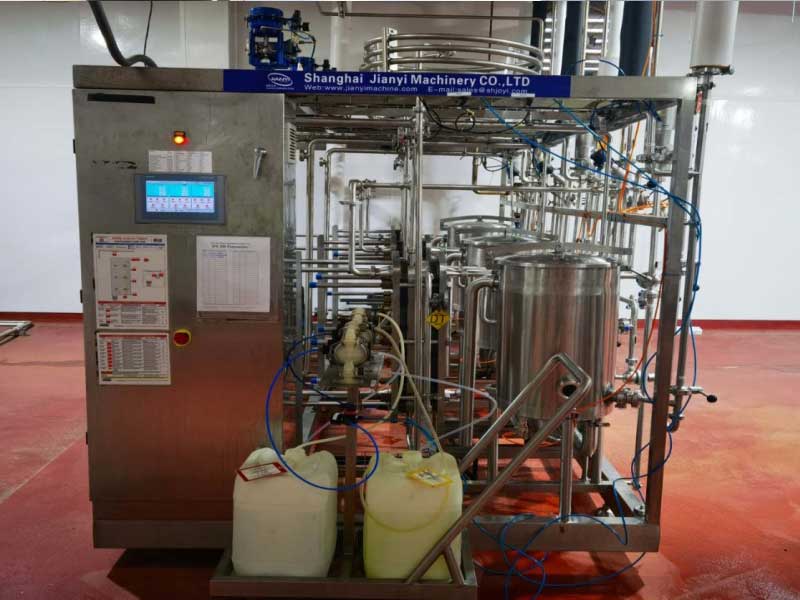

Plate pasteurizer advantage
正确图片

Pasteurizer Application

Milk and dairy product
Plant protein beverage
Ice cream
Fruit juice beverage
Alcohol
Tea beverage
Coffee beverage
Beer

Cooperative Partner

Cooperative Partner
SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Strategic Partner
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)
Logo

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
By choosing our plate type pasteurization machine, you will have a safe, efficient, and reliable food processing and production partner. We look forward to working together with you to create a better future!
FAQs
  • How to choose a suitable pasteurizer?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design a pasteurizer suitable for your product.
  • Can I choose electric heating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Depending on how much power is consumed. Excessive power consumption will significantly increase investment in power facilities.
  • Can I choose the different configuration on the pasteurizer? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 60 days for semi-automatic machines and 90 days for fully automatic machines.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
  • Can I choose the material of the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, titanium alloy, etc.
  • How many sections is the pasteurizer designed?
    加 Created with Sketch.
    形状 Created with Sketch.
    The pasteurizer is designed into several sections, depending on the temperature process, and we will design it with the most efficient heat energy recovery method.
  • If my purchase volume is large, will there be a discount?
    加 Created with Sketch.
    形状 Created with Sketch.
    Of course. Based on your purchase quantity, we will offer a relatively cost-effective discount price, which is absolutely good quality and affordable.
