Professional Single-effect Falling Film Evaporator Manufacturer

Over 15 years of falling film evaporator design and manufacture experience
Top quality with reasonable price
Supports on-site installation and on-site or remote commissioning
7X24 hours after-sales and technical support

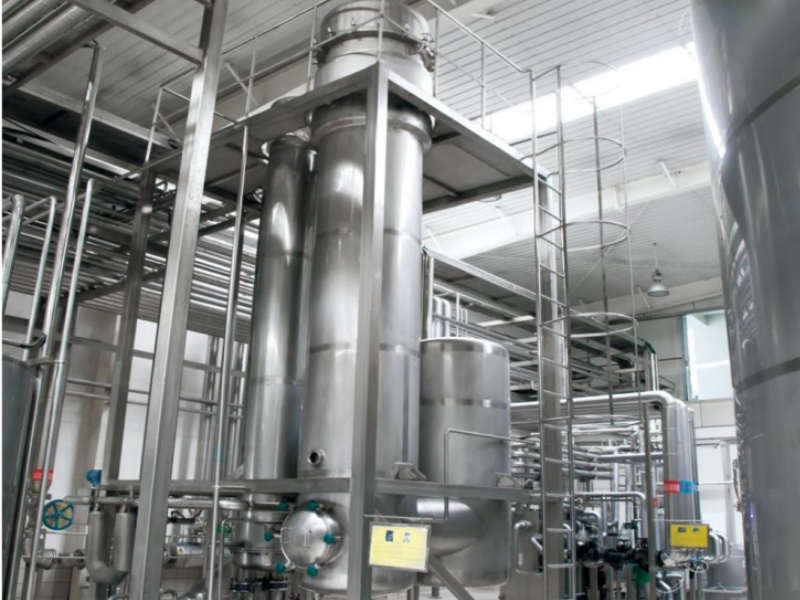

产品描述

Single-effect Falling Film Evaporator

-Single-effect falling film evaporator is manly used for material concentration during production of liquid milk. It maintains the flavor of fresh milk by short heating time and low evaporation temperature.
-Single-effect falling film evaporator is applicable to the concentration of：
food,chemical industry,medicine and pharmacology,dairy, beverage.Western medicine and starch sugar, etc. and recovery of industrial organic solvent(such as alcohol),with only temperature vacuum concentration of heat sensitive substances with smaller concentration ratio.

Single-effect Falling Film Evaporator Used for Alcohol Recovery

-Large recovery capacity
-Vacuum concentration process is adopted
- It enhances more than 5-10 times production capacity and energy consumption is reduced by 30% compared with the old same kind of device
-Small investment and high recovery benefit.

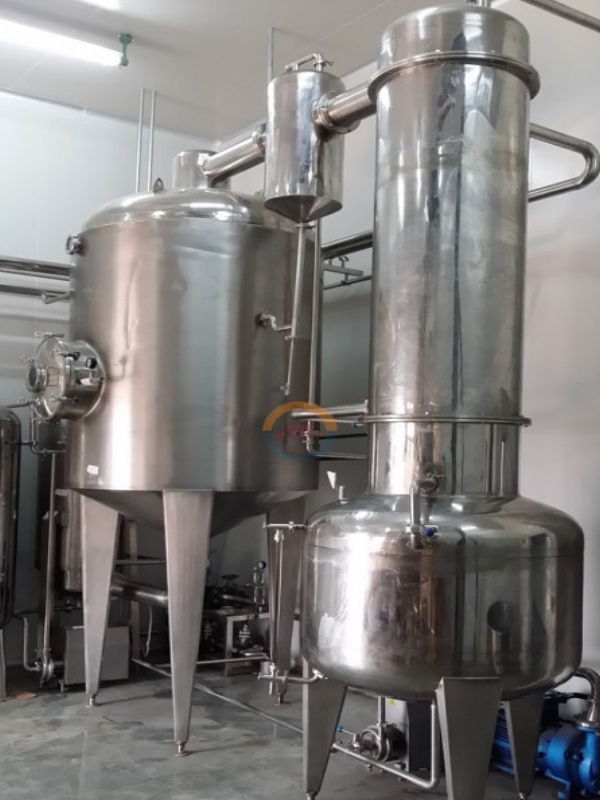

技术说明 1

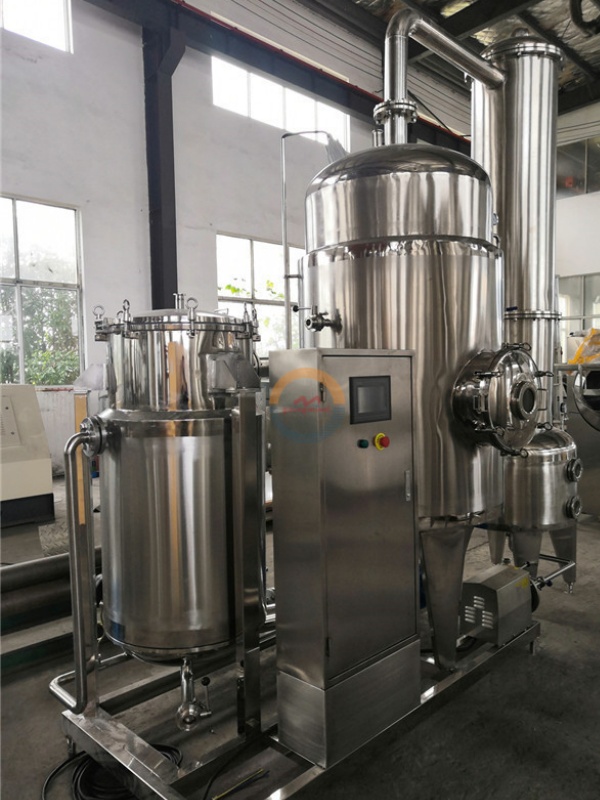

技术说明 2

Single-effect Falling Film Evaporator Used for Liquid Concentration

- Combines external heating natural cycling mode and vacuum negative pressure evaporating mode
- Quick evaporation speed and great concentration ratio to 1.3
- The liquid materials are concentrated without foam under the completely sealed status
- The liquid medicine concentrated from the device has no pollution, and has strong flavor of medicine
-The cleaning is convenient (Just open the top and bottom covers of the heater)
-The operation is convenient and the space is small
-The heater and evaporator adopt stainless steel heat preservation structure, the heat preservation layer adopts stainless steel sheet the surface is carried out mirror polishing or matte treatment.

Single-effect Falling Film Evaporator Structural Features

-The falling film room adopts stainless steel integral framework structure with low integral height. it is suitable for installation in liquid milk workshop.
-The hot pressure pump sucks secondary steam, which is energy saving.
The Single-effect falling film evaporator is installed with cleaning spray head and CIP internal system as well as fully sealed balancing tank and acid & alkali tanks, which can reduce pollution and volatilization of acid & alkali.
-The auto-control box equipped with analogue diagram of technological flow can clearly display the operation status of the device with convenient operation.

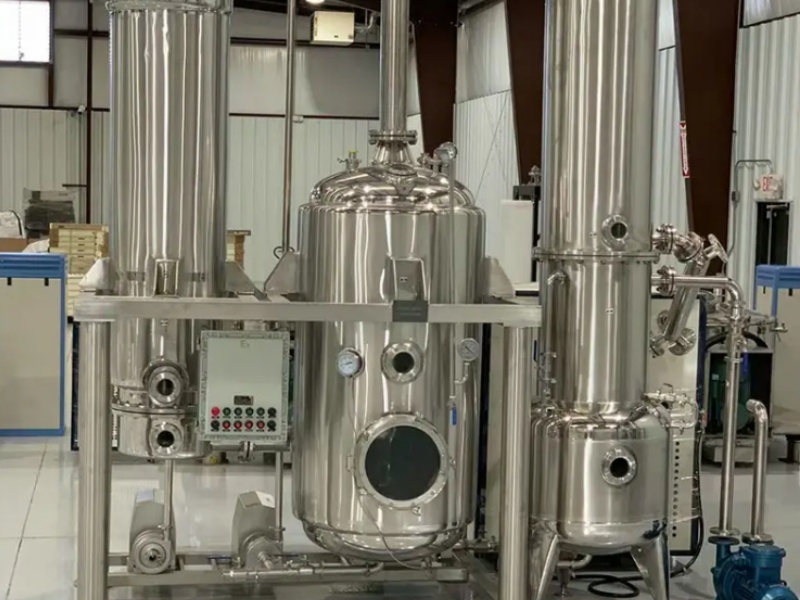

产品结构特点
Main Technical Parameters
Parameter WSFCDJ-500 WSFCDJ-1000 WSFCDJ-1500 WSFCDJ-2000 WSFCDJ-2500
Evaporation(kg/h) 500 1000 1500 2000 2500
Steam pressure(MPa) <0.25
Vacuum degree 0.08
Concentration radio 1.2-1.3
Outline dimensions
L x W x H(mm)		 2000x1000x3000 2200x1200x3000 2500x1300x3500 4600x2350x5000 5500x2800x5000

Why Choose VONFO Single-effect Falling Film Evaporator

  • Professional team
    A professional team with over 15 years of experience provides the most suitable falling film evaporator design and manufacturing process.​​​​​​​
  • Reasonable price and top quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and technical support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful cases​​​​​​​
    There are more than 400 sets evaporators in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​
Logo

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable falling film evaporator?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design Single-effect falling film evaporator suitable for your product.
  • Can I choose electric heating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Depending on how much power is consumed. Excessive power consumption will significantly increase investment in power facilities.
  • Can I choose the different configuration on the Single-effect falling film evaporator? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 60 days for Single-effect falling film evaporator.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
  • Can I choose the material of the Single-effect falling film evaporator?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, , etc.
