Professional Spraying Type Pasteurization And Cooling Tunnel Manufacturer

Over 20 years of sterilization equipment design and manufacture experience
Top quality with reasonable price
Supports on-site installation and on-site or remote commissioning
7X24 hours after-sales and technical support

Spraying Type Pasteurization And Cooling Tunnel

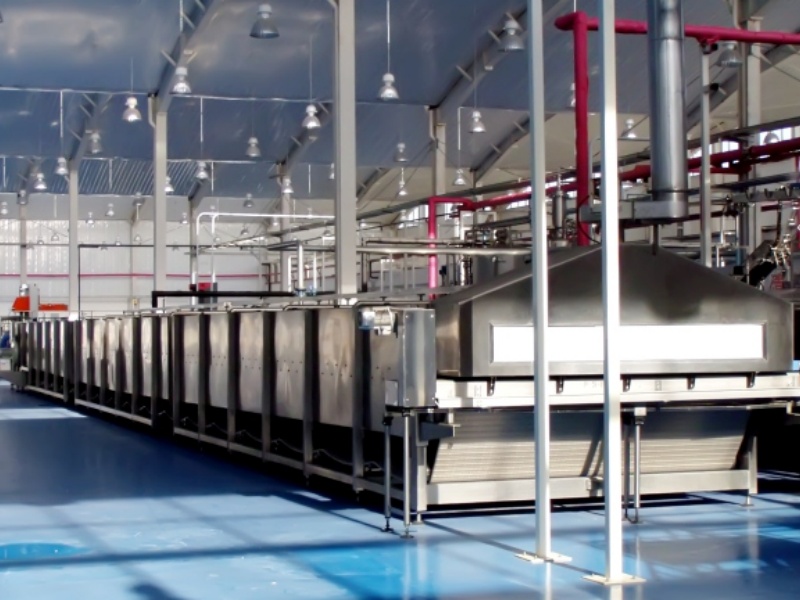

-Spraying type Pasteurization and cooling Tunnel Is a machine mainly used to secondary sterilization of food which filled in cans, glass bottle or PET bottle.
-Preheat, sterilization, pre-cooling, cooling, drying is optional configuration.
-Sterilization temperature can be controlled,Carrying out segmentation sterilization ensure that the container does not break and sterilization quality.
-The heating mode could be steam heating or electric heating, spray nozzle uses a special atomizer, uniform automation spraying in the packing container, to prevent damage to packaging containers.
-The machine to achieve automation into the bottle and out the bottle, to achieve a fully automated production line.
-The material of machine body is SUS304
 Main Technical Parameters
Model CHFL-6000 CHPL-8000 CHPL-12000 CHPL-16000
Capacity(b/h) 2000-3000 3000-4000 5000-6000 8000-10000
Sterilizing temperature(℃) <100 <100 <100 <100
Sterilizing time (min) 15-30 15-30 15-30 15-30
Deliver speed 100-550 100-550 100-550 100-550
Width of bell(m) 1.05 1.05 1.05 1.05
Pressure of steam main pipe(Mpa) <0.4 <0.4 <0.4 <0.4
Circular water volume(m3/h) 6 9 15 28
Steam consumption(kg/h) 80 120 250 280
Motor power(kw) 14.5KW 18.5KW 21KW 25KW
Size(mm) 6000×1200×1600 8000×1200×1600 12000×1200×1600 16000× 1200×1600
Weight 2500 3200 4300 5600

Why Choose VONFO Spraying Type Pasteurization And Cooling Tunnel

  • Professional Team
    A professional team with over 20 years of experience provides the most suitable sterilization equipment design and manufacturing process.​​​​​​​
  • Reasonable Price and Top Quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and Technical Support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful Cases​​​​​​​
    There are more than 400 sets sterilization equipment in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​
1

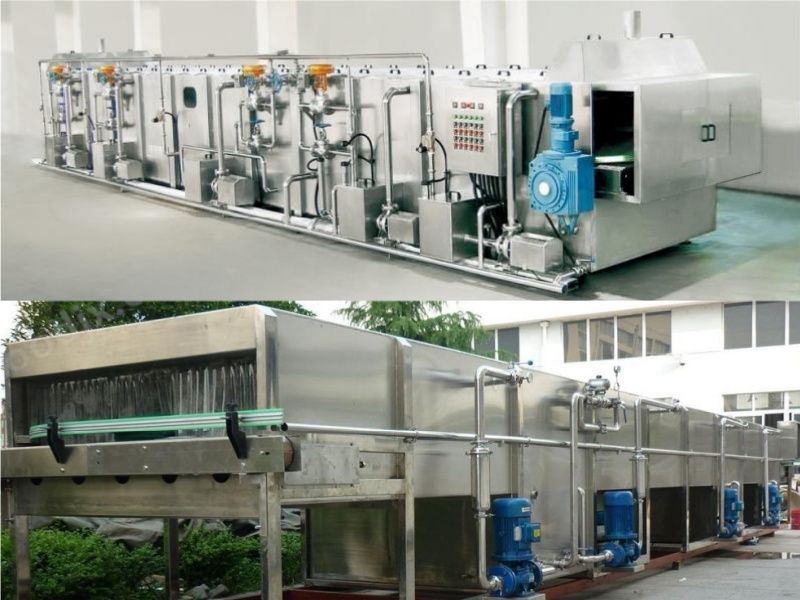

Continuously Spraying type Pasteurization and cooling Tunnel structure

Pasteurization and cooling Tunnel is composed of :
-Whole body machine
-Transmission chain Network
-Spraying device,
-Heat exchanger system
-Water recycling system
-Electrical control cabinet.

Spraying Type Pasteurization And Cooling Tunnel Application

Secondary sterilization of food which filled in:
- Cans
- Glass bottle
- PET bottle
2
Logo

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable Spraying type Pasteurization and cooling Tunnel?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design Spraying type Pasteurization and cooling Tunnel suitable for your product.
  • Can I choose electric heating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Depending on how much power is consumed. Excessive power consumption will significantly increase investment in power facilities.
  • Can I choose the different configuration on the Spraying type Pasteurization and cooling Tunnel ? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 60 days for Spraying type Pasteurization and cooling Tunnel.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
