Professional Stainless Steel Mixing Tank Manufacturer

Over 20 years of stainless steel mixing/blending tank design and manufacture experience
Top quality with reasonable price
Supports on-site installation and remote guided installation
7X24 hours after-sales and technical support

VONFO Stainless Steel Mixing / Blending Tank Types

Single-layer stainless steel mixingblending tank

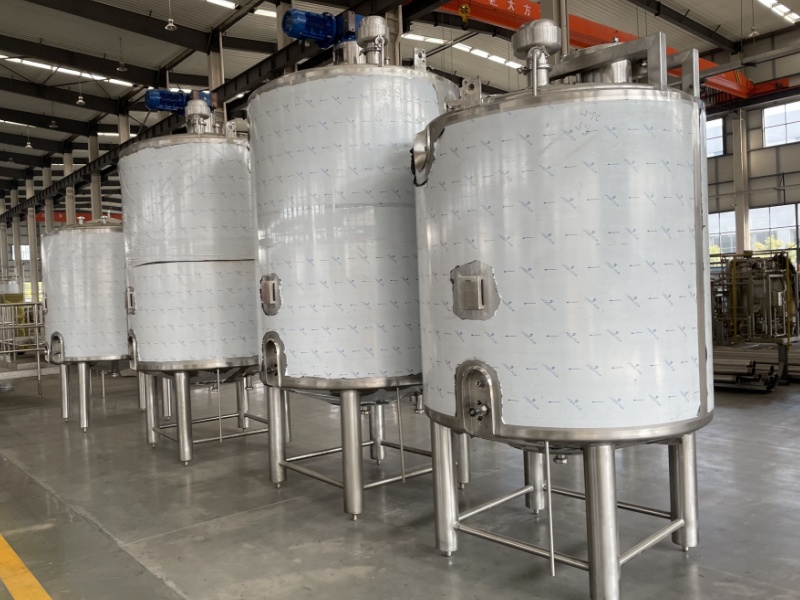

Single-layer Stainless Steel Mixing/Blending Tank

- Used as raw material dosing tank, liquid storage tank,liquid composing tank, temporary storage tank and water storage tank etc.
- Made of single-layer stainless steel structure.
- Materials are all sanitary stainless steel 304/316.
- Humanized structure design and easy to operate.
- Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

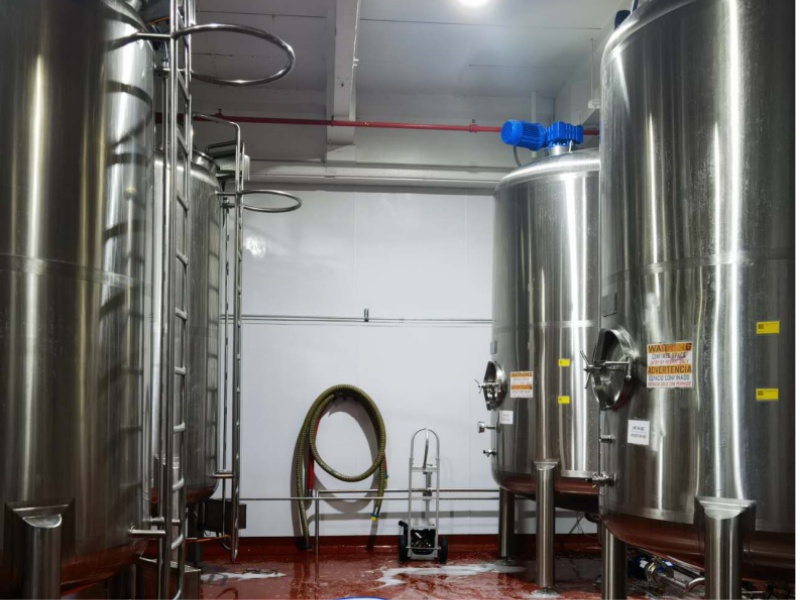

Double-layer Stainless Steel Mixing/Blending Tank

- Used as raw material dosing tank,liquid composing tank, liquid blending tank,temporary storage tanks hot water tank etc.
- Adopt structure of internal tank and external package, with heat preservation materials inside
- Materials are all sanitary stainless steel 304/316.
- Humanized structure design and easy to operate.
- Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
Double-layer stainless steel mixingblending tank
Three-layer stainless steel jacketed fermentation tank

Three-layer Stainless Steel Jacketed Fermentation Tank

- The Jacketed fermentation tank is suitable for milk fermentation and beer brewing ,Etc.
- The Jacketed fermentation tank is made of vertical three-layer structure with heating, cooling,insulation and stirring .
- Materials are all sanitary stainless steel 304/316.
- Humanized structure design and easy to operate.
- Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

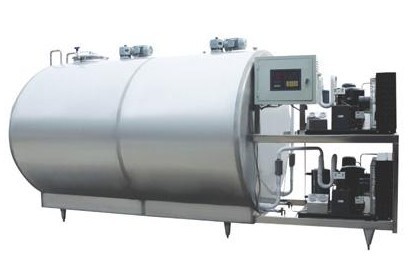

Three-layer Stainless Steel Direct Cooling Type Milk Tank

-The direct cooling type milk tank (refrigerating milk tank) is specially designed for cooling and storing liquid for dairy industries, dairy plants ,cattle farms milk collection stations and other industries
-Through the full-automatic computer control , the material (fresh milk) are cooled and kept at constant temperature to prevent the growth of bacteria.
-The direct cooling type milk tank adopts advanced honeycomb Miller board evaporator for direct heat exchanging and cooling with milk.
-The direct cooling type tank body is fully made of SUS304 or 316 stainless provide with pressurizing automatic rotary cleaning CIP spray head and automatic blending device.
Three-layer stainless steel direct cooling type milk tank
Three-layer stainless steel jacketed cooking tank

Three-layer Stainless Steel Jacketed Cooking Tank

- Adopt structure of internal tank,jacket and external package, with heat preservation materials inside
-Different Jackets design available for Water, Thermo Oil Heating
-Heating type: steam and electric heating
- Materials are all sanitary stainless steel 304/316.
- Humanized structure design and easy to operate.
- Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
 Main Technical Parameters
Effective volume    (L) Effective volume (Galon) Dimension of tank  (mmxmm) Total height     (mm)  inlet & outlet             (mm) Insulation layer                  (mm)
500 132 840x1000 2250 38 60
 1000 264 1060x1220 2550 51 60
 2000 528 1340x1500 2900 51 60
 3000 792 1410x2000 3400 51 60
 4000 1056 1620x2000 3450 51 60
 5000 1320 1810x2000 3500 51 60
 6000 1585 1980x2000 3550 51 60
 7000 1849 1930x2440 4000 51 60
 8000 2113 2060x2440 4000 51 60
 9000 2377 2180x2440 4050 51 60
10000 2641 2300x2440 4050 51 60
It can be made according to special requirements of customers.
Total height (H) is in accordance with outlet height of 800 mm.
If outlet Height ischanged, then total height (H) shall also be adjusted
This product can be customized according to customer requirements, starting from 5 units of 200 gallons or less.

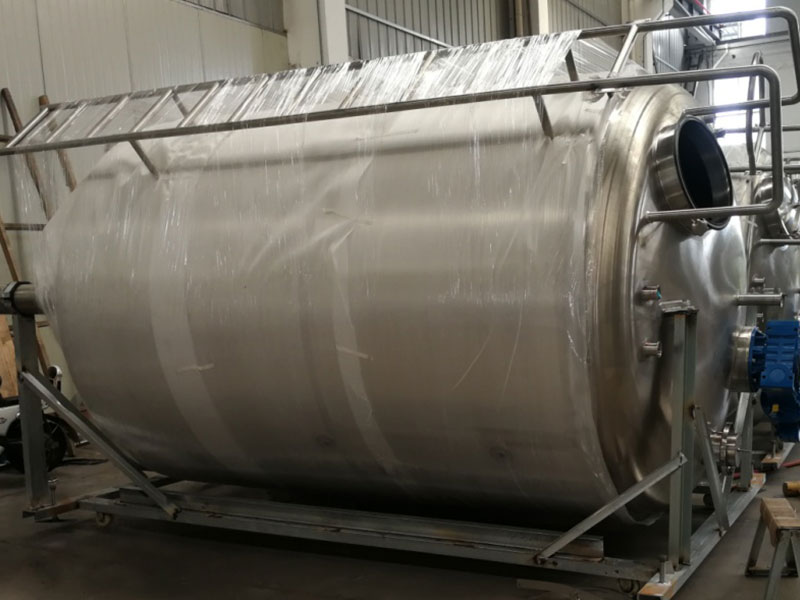

Stainless steel mixing/blending tank

Structure Characteristics

-Tank material: SS304/SS316
-Nominal volume:50L-20000L (13galons-5283galons)
-Vertical or horizontal structure
-Heating method: steam heating or electric heating
-Heating medium:water, thermal oil, steam
-Insulation material: pearl cotton, rock wool, polyurethane
-Mixer type:frame type, anchor type, paddle type, turbine type, etc.
-Mixer speed: 0-1440 RPM(Fixed speed or VFD control)
-Use mirror polishing or 2B color matte or 2B matte surface polishing treatment, beautiful and clean appearance.

Configuration of Mixing Tank

Various types of mixer
Thermal insulation layer
Quick open manhole.
Various types of CIP cleaners .
Fly and insect resistant breathing cover.
Adjustable legs or skirt-base bottom
Dismountable materials input pipe assembly.
Thermometer
Sanitary sample valve
Ladder
Liquid level meter and level controller
Eddy-proof board.

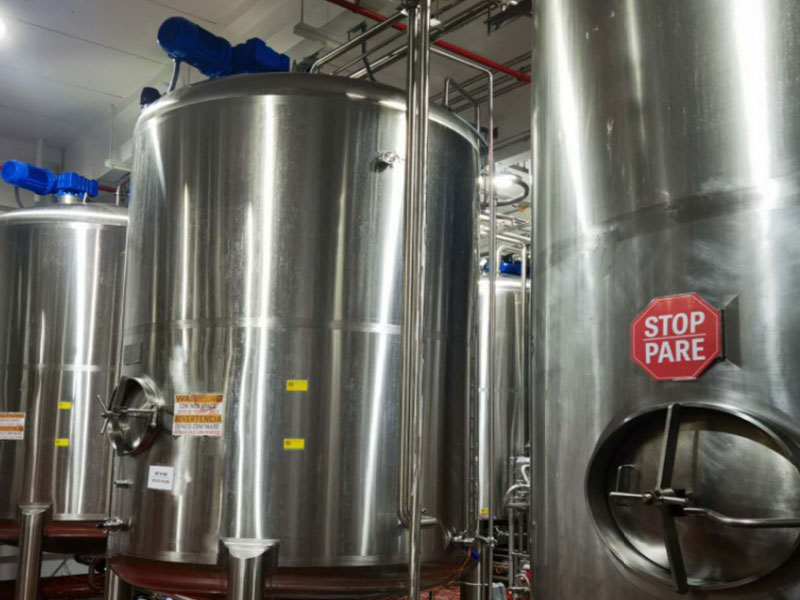

Stainless steel mixing/blending tank
1

Application of Mixing Tank

Dairy engineering
Food and beverage engineering
Fruit and vegetable juice engineering
Beer engineering.
Fine chemical engineering
Pharmaceutical engineering
Water treatment engineering

Why Choose VONFO Stainless Steel Mixing / Blending Tank

  • Professional team
    A professional team with over 20 years of experience provides the most suitable Stainless steel mixing/blending tank design and manufacturing process.​​​​​​​
  • Reasonable price and top quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and technical support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful cases​​​​​​​
    There are more than 500 sets stainless steel mixing/blending tank in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)
Logo

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable stainless steel mixing/blending tank?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design the mixing/blending tank which suitable for your product.
  • Can your factory produce stainless steel mixing/blending tank according to our drawings or samples?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, of course we can
  • What’s the MOQ for stainless steel mixing/blending tank?
    加 Created with Sketch.
    形状 Created with Sketch.
    Normally MOQ will be 1 pcs
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 30-60 days after have agreement for the drawing of stainless steel mixing/blending tank
  • How to install and debug the stainless steel mixing/blending tank?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the tank arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video
  • Can I choose the material of the stainless steel mixing/blending tank?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, titanium alloy, etc.
