Professional Sterilization Kettle Manufacturer

Over 20 years of sterilization equipment design and manufacture experience
Top quality with reasonable price
Supports on-site installation and on-site or remote commissioning
7X24 hours after-sales and technical support

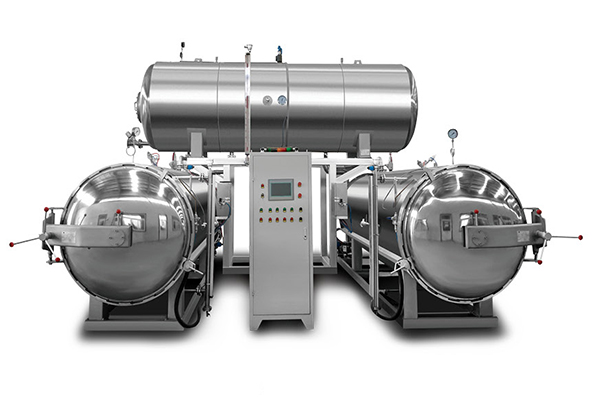

两锅一罐杀菌锅

Sterilization Kettle

-Sterilization kettle is used for the sterilization of various products, such as food and pharmaceuticals.
-Sterilization kettle consists of a chamber where the products are placed, and it is sealed to create a closed system. Steam or hot water is then circulated into the chamber, raising the temperature and pressure inside. The high pressure and temperature effectively destroy any microorganisms present in the products.
-After the sterilization process, the pressure is slowly released, and the products are cooled down.
 Main Technical Parameters

Model		  Outside measurement(mm)  Inner
diameter (mm)		 Length  (mm) Capacity  (mm) Thickness of
autoclave(m)		 Max working
pressure (Mpa)		   Max  working
temperature    (℃)		 Weight      (kg) Operating
Weight(kg)		 Power      (Kw)
L W H
PLZ.10-1.B.4 1950 1200 1850   1000 900 1.00 4 0.3 147 560 860 6
PLZ.10-2.B.4 3000 1200 1850   1000 1800 1.80 4 0.3 147 650 1250 8.5
PLZ.12-2.B.4 3100 1500 2240   1200 1800 2.60 5 0.3 147 860 1400 13.5
PLZ.12-3.B.4 4100 1500 2240   1200 2700 3.70 5 0.3 147 1200 1800 15.5
PLZ.12-4.B.4 5020 1500 2340   1200 3600 4.80 5 0.3 147 1300 2100 18.5
PLZ.13-4.B.4 5020 1600 2540   1300 3600 5.70 5 0.3 147 1500 2300 26.5

Why Choose VONFO Sterilization Kettle

  • Professional Team
    A professional team with over 20 years of experience provides the most suitable sterilization equipment design and manufacturing process.​​​​​​​
  • Reasonable Price and Top Quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and Technical Support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful Cases​​​​​​​
    There are more than 400 sets sterilization equipment in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​
电加热杀菌锅

Sterilization Kettle Features

-The temperature within the Rotary Retorts is very stable, and heat distribution is uniform.
-.Quick Temperature Rising.
-The direct heating and cooling, raise the production efficiency
-Perfect pressure control ,which is suitable for the sterilization of gas-included packages.
-Suitable for various packing materials.
-All of the sterilizing courses can be controlled by computer PLC
-The sterilizing kettle adopts stimulative temperature control system, and multilevel heating system can be set
-The function of f value measurement
-The computer can store at least 30 sterilizing formulas

Sterilization Kettle Application

For all heat resistant and waterproof package material
-Glass container; glass bottle, glass jar
-Mental can: tin can , aluminum can
-Plastic container serial: PP bottles, HDPE bottles
-Flexible pouch serial: aluminum foil bag.high temperature cooking bag.
vacuum bag,transparent bag
27
Logo

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable Sterilization kettle?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design Spraying type Pasteurization and cooling Tunnel suitable for your product.
  • Can I choose electric heating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Depending on how much power is consumed. Excessive power consumption will significantly increase investment in power facilities.
  • Can I choose the different configuration on the Sterilization kettle? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 60 days for Sterilization kettle.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
