Professional Tube in Tube Sterilizer Manufacturer

Professional Tube in tube sterilizer manufacturer
Over 20 years of pasteurizer/sterilizer design and manufacture experience
Top quality with reasonable price
Supports on-site installation and on-site or remote commissioning
7X24 hours after-sales and technical support
Tube in tube sterilizer

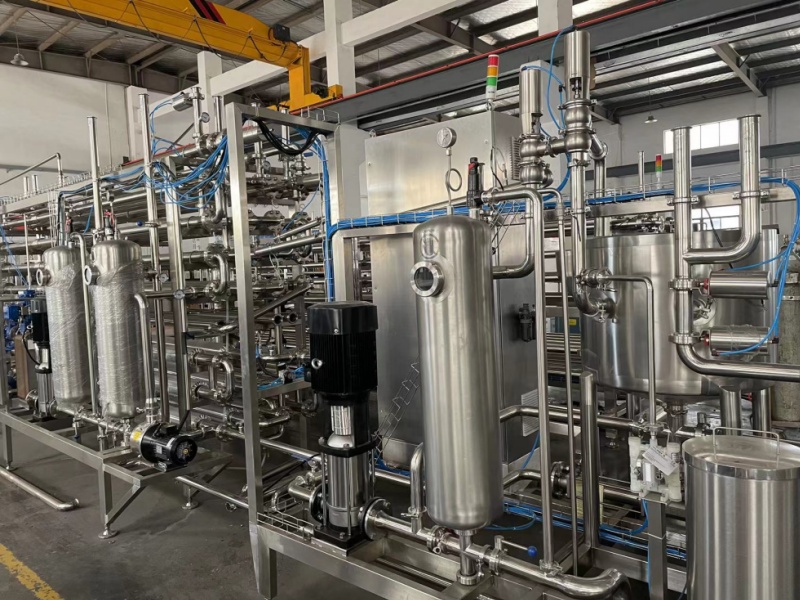

Tube in Tube Sterilizer

Production capacity: 1~20 t/h
Sterilizing temperature: 108~140℃ (Adjustable)
Holding time: 5~150 s (Adjustable)
Control method: full-automatic control

Tube in Tube Sterilizer Main Composition

- Four layer sleeving pipe (or multi-pipe) heat exchanger;
Stepless speed change conveying pump, holder, closed water barrel, super heating water generator, frame, controller etc.
- Tube group has the features of simple structure and small resistance.
-The heating-holding section has reasonable structure to guarantee the temperature stability and security of products.
-There is superheating water and cooling water channel during the cleaning which can avoid the scaling.
- Plc monitor can indicate every parameter directly to inspect it in time easily and guarantee the stability of running.

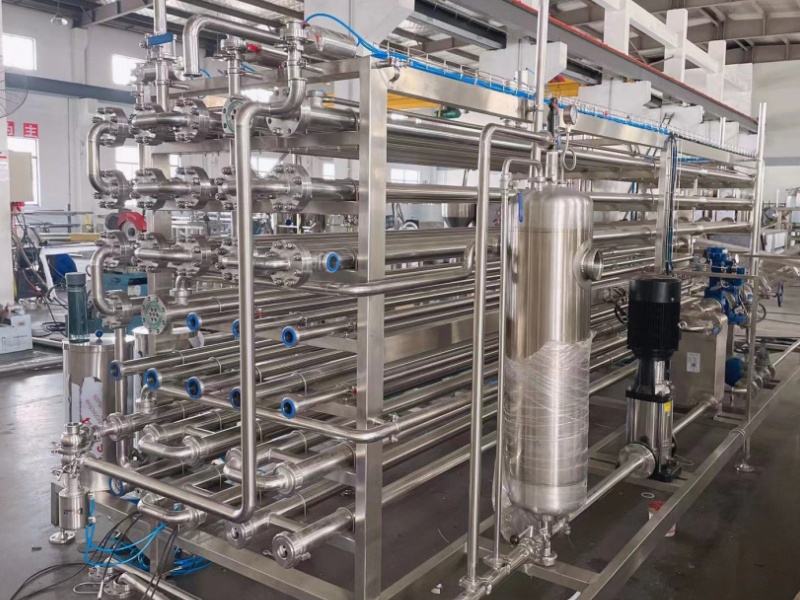

产品主要构成图片
Main Technical Parameters
Model Capaciy
Kg/h		 Sterilizing
temperature  (℃)		 Cooling
temperature (℃)		 Power
consumption (℃)		 Steam
consumption (℃)		 Water
consumption            20℃(kg/h)		 Compressed air
consumption (kg/h)		 Dimension
Vonfo-SJ-1 1000 110 32-45 14.1 150 5000 0.1 8000x800x1000
Vonfo-SJ-2 2000 110 32-45 19.2 300 10000 0.1 8000x1000x1000
Vonfo-SJ-3 3000 110 32-45 33 450 15000 0.3 8000x1200x1200
VonfF-SJ-6 6000 110 32-45 64.5 900 42000 0.3 8000x1200x1800
Vonfo-SJ-8 8000 110 32-45 80.5 1200 56000 0.4 8000x1200x1800
Vonfo-SJ-10 10000 110 32-45 110 1500 70000 0.5 8000x1400x2000
Vonfo-SJ-12 12000 110 32-45 132 1800 84000 0.5 8000x1400x2000
Notes: Dimension (adjust according to the required capacity of the customer)

Why Choose VONFO Tube in Tube Sterilizer

  • Professional Team
    A professional team with over 20 years of experience provides the most suitable Tube in tube sterilizer design and manufacturing process.​​​​​​​
  • Reasonable Price and Top Quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and Technical Support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful Cases​​​​​​​
    There are more than 400 pasteurizer/sterilizer in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​
Tube in tube sterilizer advantage

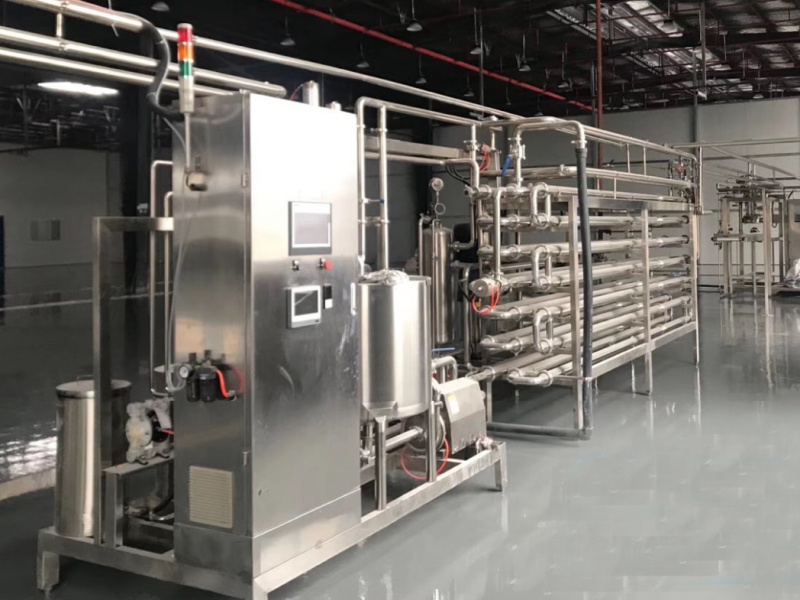

Tube in Tube Sterilizer Advantage

- Unique design: independent heat recovery system which can recover more than 90% heat energy, which largely saves energy consumption.
-Whole process can be automatically controlled and recorded. Sterilization temperature is controlled accurately with fluctuation of less than 2℃
-.Automatic and independent CIP and SIP system, to ensure the system asepsis.
-Strong safety ensurance. The pressure protection and alarm system are set for steam, hot water, materials, electricity
-Main control components are all famous brand:
SIMENS(PLC),SCHNEIDER(Electrical parts),SpiraxSarco(steam valve),etc

Tube in Tube Sterilizer Application

Tube in tube sterilizer is used for the sterilizing of:
Tomato paste
Onion paste
Chili paste,
Blackberry paste
Carrot paste,
Peach paste
Apricot paste
Other high viscosity products
20
Logo

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable tube in tube sterilizer?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design tube in tube sterilizer suitable for your product.
  • Can I choose electric heating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Depending on how much power is consumed. Excessive power consumption will significantly increase investment in power facilities.
  • Can I choose the different configuration on the tube in tube sterilizer ? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 90 days for fully automatic tube in tube sterilizer.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
  • Can I choose the material of the tubes?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, titanium alloy, etc.
  • How many sections is the tube in tube sterilizer designed?
    加 Created with Sketch.
    形状 Created with Sketch.
    The tube in tube sterilizer is designed into several sections, depending on the temperature process, and we will design it with the most efficient heat energy recovery method.
