Professional Pasteurizer / Sterilizer Manufacturer

Over 20 years of pasteurizer/sterilizer design and manufacture experience
Top quality with reasonable price
Supports on-site installation and on-site or remote commissioning
7X24 hours after-sales and technical support

VONFO Tubular Pasteurizer Types

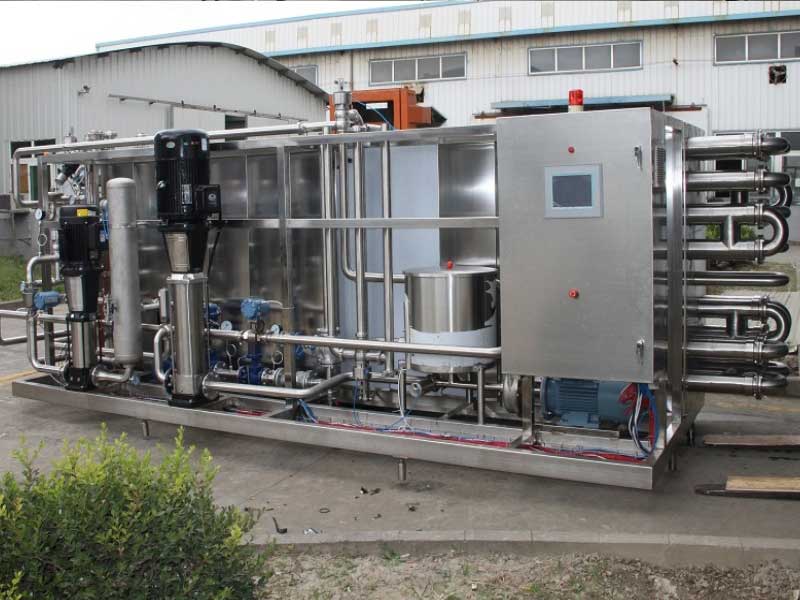

Tubular pasteurizer

Tubular Pasteurizer

Production capacity: 1000~20000L/H （Starting from 5 units under 200 gallons）
Sterilizing temperature: 85~140℃ (Adjustable)
Holding time: 15~30 s (Adjustable)
Control method: semi-automatic control, full-automatic control

Tubular pasteurizer main composition:
Hot water system,tube heat exchanger,material feeding system,control system, pipelines and valves

Ultra-high Temperature Tubular Sterilizer (UHT)

Production capacity: 1000~20000L/H （Starting from 5 units under 200 gallons）
Sterilizing temperature:121~150℃ (Adjustable)
Holding time: 3~5 s
Control method: full-automatic control

UHT Tubular sterilizer main composition:
Hot water system,tube heat exchanger,SIP and CIP system,material feeding system,full -automatic control system, pipelines and valves

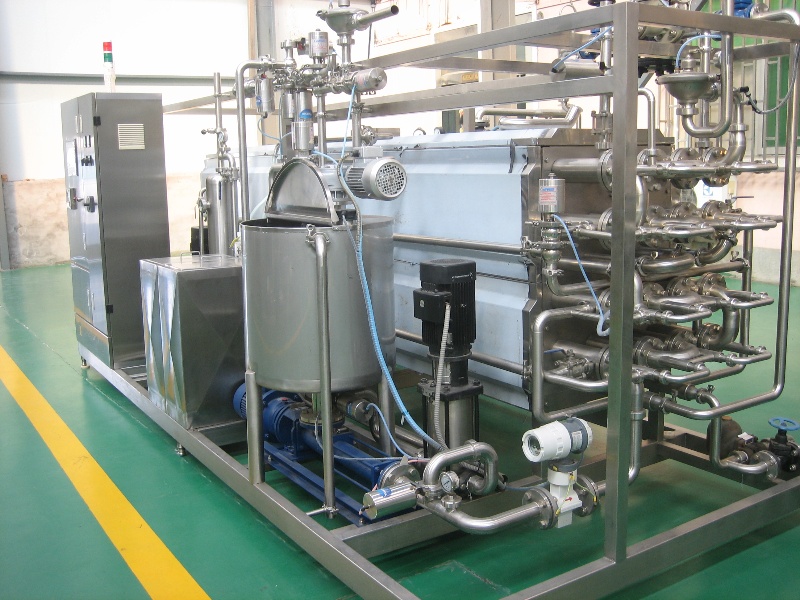

UItra-high Tem peratu re Tubular Sterilizer (UHT)
 Main Technical Parameters
Name Vonfo-UHT-1t Vonfo-UHT-2t Vonfo-UHT-3t Vonfo-UHT-4t Vonfo-UHT-5t Vonfo-UHT-6t Vonfo-UHT-8t Vonfo-UHT-10t
Production capacity(T/H) 1 2 3 4 5 6 8 10
Heat exchanging area(㎡) 20 28 35 45 52 60 75 88
Temperature of material inlet (℃) ≤15 ≤15 ≤15 ≤15 ≤15 ≤15 ≤15 ≤15
Temperature of material outlet(℃) ≤25 ≤25 ≤25 ≤25 ≤25 ≤25 ≤25 ≤25
Design temperature(℃) 150 150 150 150 150 150 150 150
Heat preservation time(℃) 5S 5S 5S 5S 5S 5S 5S 5S
Temperature of ice water inlet (℃) ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃
Steam consumption (kg/h) 200 250 330 410 480 550 650 780
Equipment weight(Kg) 1600 2000 2400 2600 2800 3000 3800 4200

Why Choose VONFO Tubular Pasteurizer

  • Professional team
    A professional team with over 20 years of experience provides the most suitable pasteurizer/sterilizer design and manufacturing process.​​​​​​​
  • Reasonable price and top quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and technical support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful cases​​​​​​​
    There are more than 400 pasteurizer/sterilizer in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​
1

Tubular Sterilizer Advantage

Tubular sterilizer can process products of different viscosity.
High heat recovery, energy saving and consumption reduction
Main control components are all famous brand:
SIMENS(PLC),SCHNEIDER(Electrical parts),SpiraxSarco(steam valve),etc
Compact structure, stable performance and simple operation
low maintenance cost,long service life
Easy to clean, equipped with ClP system which can clean the machine and pipes automatically

Tubular Pasteurizer Application

Milk and dairy product
Plant protein beverage
Ice cream
Fruit juice beverage
Alcohol
Tea beverage
Coffee beverage
Beer
High viscosity liquid food: cream,Jam,ketchup,etc.
1
Logo

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable tubular pasteurizer/sterilizer?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design tubular pasteurizer/sterilizer suitable for your product.
  • Can I choose electric heating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Depending on how much power is consumed. Excessive power consumption will significantly increase investment in power facilities.
  • Can I choose the different configuration on the pasteurizer/sterilizer ? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 60 days for semi-automatic machines and 90 days for fully automatic machines.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
  • Can I choose the material of the tubes?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, titanium alloy, etc.
  • How many sections is the tubular pasteurizer/sterilizer designed?
    加 Created with Sketch.
    形状 Created with Sketch.
    The tubular pasteurizer/sterilizer is designed into several sections, depending on the temperature process, and we will design it with the most efficient heat energy recovery method.
