Professional UHT Sterilizer Manufacturer

Professional UHT sterilizer manufacturer
Top quality with reasonable price
Over 20 years of UHT sterilizer design and manufacture experience
7X24 hours after-sales and technical support

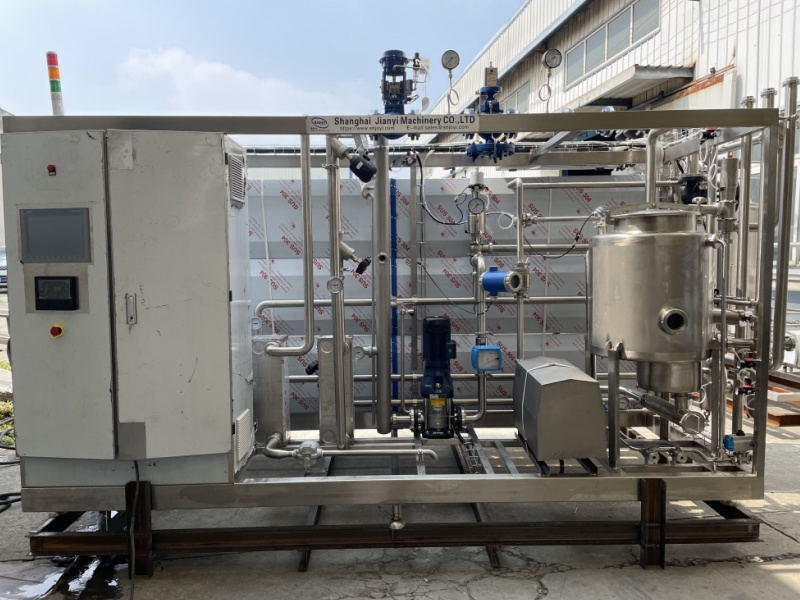

UHT Tubular Sterilizer

Production capacity: 1~20 t/h
Sterilizing temperature:121~150℃ (Adjustable)
Holding time: 3~5 s
Control method: full-automatic control

UHT Tubular sterilizer main composition:
Hot water system,tube heat exchanger,SIP and CIP system,material feeding system,full -automatic control system, pipelines and valves
 Main Technical Parameters
Name Vonfo-UHT-1t Vonfo-UHT-2t Vonfo-UHT-3t Vonfo-UHT-4t Vonfo-UHT-5t Vonfo-UHT-6t Vonfo-UHT-8t Vonfo-UHT-10t
Production capacity(T/H) 1 2 3 4 5 6 8 10
Heat exchanging area(㎡) 20 28 35 45 52 60 75 88
Temperature of material inlet (℃) ≤15 ≤15 ≤15 ≤15 ≤15 ≤15 ≤15 ≤15
Temperature of material outlet(℃) ≤25 ≤25 ≤25 ≤25 ≤25 ≤25 ≤25 ≤25
Design temperature(℃) 150 150 150 150 150 150 150 150
Heat preservation time(℃) 5S 5S 5S 5S 5S 5S 5S 5S
Temperature of ice water inlet (℃) ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃ ≤2℃
Steam consumption (kg/h) 200 250 330 410 480 550 650 780
Equipment weight(Kg) 1600 2000 2400 2600 2800 3000 3800 4200

Why Choose VONFO UHT Sterilizer

  • Professional Team
    A professional team with over 20 years of experience provides the most suitable UHT sterilizer design and manufacturing process.​​​​​​​
  • Reasonable Price and Top Quality​​​​​​​
    Provide factory direct sales prices based on the best quality to save your costs.​​​​​​​
  • Timely after-sales and Technical Support​​​​​​​
    7X24 hours, technical and after-sales support from a professional team​​​​​​​
  • Successful Cases​​​​​​​
    There are more than 400 pasteurizer in normal operation around the world, including the United States, Europe, the Middle East and Africa, and the quality has been endorsed by customers.​​​​​​​
1

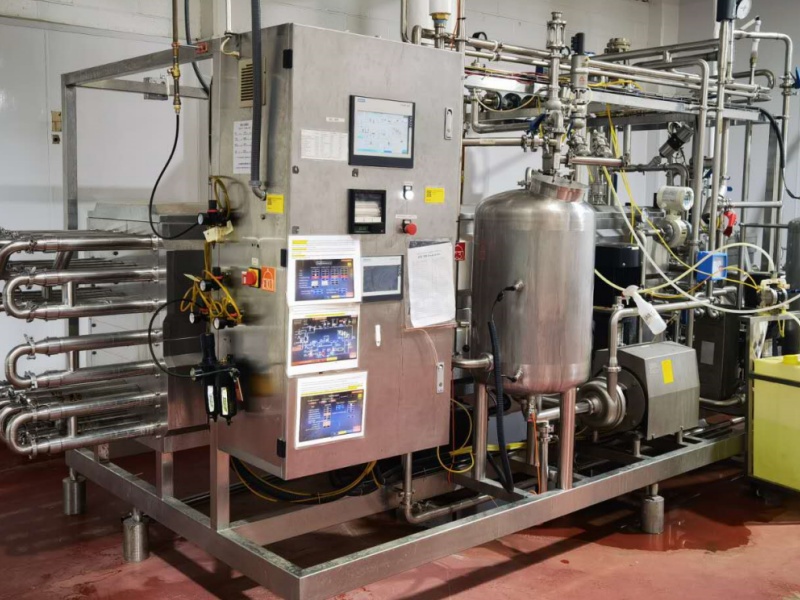

UHT Tubular Sterilizer Advantage

-High reliability
During operation of the equipment,the product is produced in a completely closed system without secondary contamination .the independent tubular sterilizing system and CIP system is controlled by PLC program automatically.
-High quality finished products
The equipment is designed through digital heat quantity calculation. which
has precisely designed the heat exchanging area required for temperature
rise and cooling of products, so as to make sure that the products can
continuously carry out instant cooling and heating treatment, effectively
reduce the loss of product flavor and nutritious content and kill the harmful
bacteria.
-Reasonable structure design, high pressure resistance, simple and convenient maintenance
-Long operation time
-Simple operation and high production efficiency
The full-automatic control system has greatly enhanced production efficiency.
Self-provided ClP cleaning system can achieve automatic cleaning in place
(CIP), and do not rely on the starting of ClP system on plant main line.
-Main control components are all famous brand:
SIMENS(PLC),SCHNEIDER(Electrical parts),SpiraxSarco(steam valve),etc

UHT Sterilizer Application

Used for Aseptic normal temperature/Cold filling production line,such as :
Long life milk
Plant protein beverage
Fruit juice
Tea beverage
It is also applicable to Non-aseptic production line, such as liquid food with high viscosity :
Ice cream
Artificial cream
Jam
Ketchup
uht sterilizer application
Logo

Cooperative Partner

SPX FLOW， GEA，Alfa Laval，Siemens，Omron，SpiraxSarco
Danone，coca-cola，Nestle，Heinz，Mengniu Dairy，Yili Group， Bright dairy，
WANT WANT，Master Kong
Big Easy Blends(USA),Forage project(USA), Mineral Logic( USA).
5 Star Drinks(Ghana), Fedek group(Ghana)

REQUEST A QUOTE NOW

24-hours-online professional pre-sales consultation, after-sales services & prompt feedback.
FAQs
  • How to choose a suitable UHT sterilizer?
    加 Created with Sketch.
    形状 Created with Sketch.
    Based on your product characteristics and production process, our engineers will design UHT sterilizer suitable for your product.
  • Can I choose electric heating?
    加 Created with Sketch.
    形状 Created with Sketch.
    Depending on how much power is consumed. Excessive power consumption will significantly increase investment in power facilities.
  • Can I choose the different configuration on the UHT sterilizer ? Such as valves, pumps, electrical components, etc.
    加 Created with Sketch.
    形状 Created with Sketch.
    All valves, pumps, electrical components, etc. can be configured with different brands according to your requirements and budget.
  • How long is the delivery time?
    加 Created with Sketch.
    形状 Created with Sketch.
    It takes about 90 days for fully automatic machines.
  • How to install and debug the machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    After the machine arrives at your factory, our company will send engineers to the site for installation and debugging.
    If you have a professional team and can install by yourself, then our company can remotely install and debug through video and software guidance.
  • Can I choose the material of the tubes or plates?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can choose from SUS304, SUS316L, titanium alloy, etc.
  • How many sections is the UHT sterilizer designed?
    加 Created with Sketch.
    形状 Created with Sketch.
    The tubular pasteurizer/sterilizer is designed into several sections, depending on the temperature process, and we will design it with the most efficient heat energy recovery method.
