In modern industrial production, stainless steel storage tanks have become necessary storage equipment , processing, fermentation, and transportation of liquid and solid raw materials. This paper will comprehensively analyze the function, structure classification, industry application, and purchase guide of stainless steel storage tanks, and provide practical reference for enterprise procurement and use.
Stainless steel storage tanks are sealed vessels made of austenitic stainless steel (mainly 304/316L) by the welding process for safe storage or handling of liquid, gas, and powder materials. Its core value lies in corrosion resistance, zero pollution, and long life, meeting the industrial demands of the food, pharmaceutical, chemical, and other high-sanity and strong corrosion scenes.

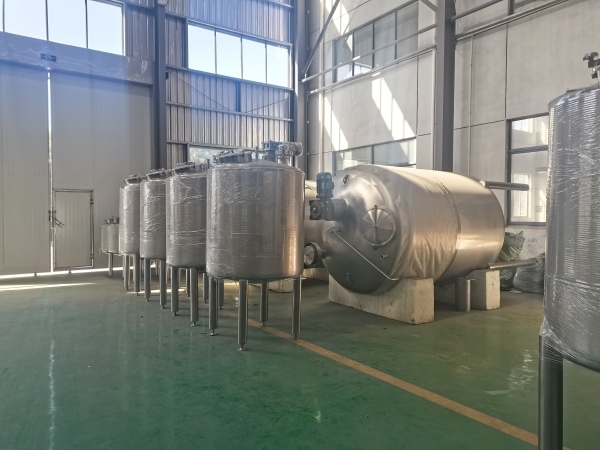

The stainless steel storage tank can be divided into five categories according to the structure:

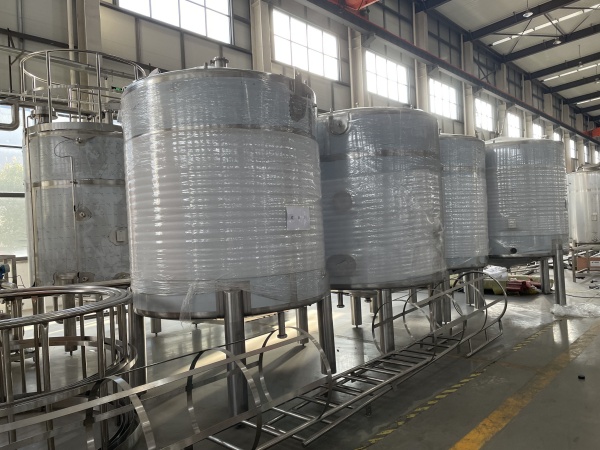

·Vertical storage tanks: it is the most common type, suitable for vertical installation inside or outside the plant, with small land occupation and large capacity, and applicable to food, brewing, chemical and other fixed scenes;
·Horizontal storage tank: horizontal storage tank is placed horizontally. Horizontal low center of gravity design, strong stability, suitable for vehicle-mounted transportation and height limiting space;
·Single Level storage Tanks: Single level tanks do not require jackets and insulation and are the most basic type of storage container. Economical storage under normal temperature and pressure (such as water and vegetable oil);
·Jacket storage tanks: the outer wall of the jacket tank is provided with additional jacket space, which is especially suitable for storing and reacting materials sensitive to temperature. The outer wall is provided with a temperature control jacket (full/half/spiral type) to accurately control temperature sensitive materials such as chocolate and drugs;
·Stirring tanks: this kind of tank body is integrated with stirrer at the top or side for mixing and emulsification while storing materials. Integrated frequency conversion blender for mixing and emulsification of cosmetics, condiments, etc.
There are three types of specialized tanks according to their core functions:
·Fermentation tank: conical bottom+jacket+CIP system, specially designed to provide a sterile environment for microbial fermentation such as beer and yogurt;
·Mixing tank: integrating mixing materials and storage, supporting batch and continuous production of shampoo, jam and other products;
·Buffer tank: process linkage hub, realizing quantitative transfer and batch control in pharmaceutical and beverage production lines.

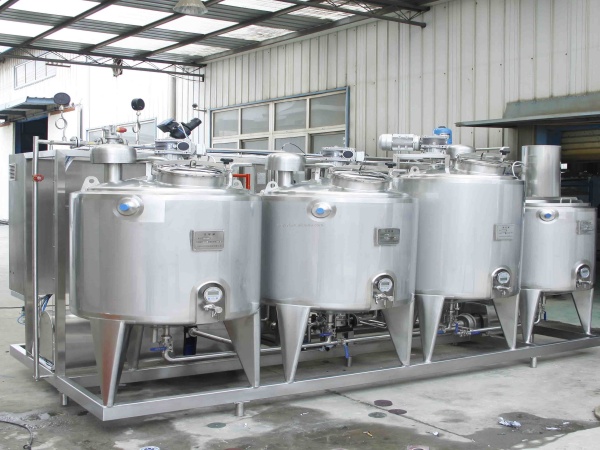

Food and Beverage Industry
In the production process of milk, fruit juice, syrup, sauce, beverage, etc., stainless steel storage tank shall ensure food hygiene standards, prevent corrosion and odor, support low-temperature storage and CIP automatic cleaning.
Brewing of beer and alcoholic beverages
The brewing industry has very high requirements on temperature, pressure and cleanliness during fermentation, and stainless steel tanks are used for storage of saccharified liquid, main fermentation, post-fermentation and finished product storage.
Five core elements of stainless steel tank selection
Medium characteristics and application
Critical considerations: material corrosivity, temperature, health class
Example: Sour foods (if juice) require high corrosion-resistant materials, and pharmaceutical media require sterility certification
Material selection
Material | Feature | Applicable Scenarios |
304 | Basic corrosion resistance economical type | Drinking water, neutral food (edible oil)
|
316 | Anti chloride ion corrosion | Seawater, weak acid and weak alkali chemicals |
316L | Ultra low carbon, welding without sensitization | Pharmaceuticals, biologics, strong acid media |
Capacity gradient: 100L-20000L 26 gallons - 5283 gallons (starting from 5 units under 200 gallons, customizable)
Space adaptability: verify the width, floor height, and equipment layout of the workshop door (>20% maintenance space reserved)
Process function configuration
Temperature control system: heating jacket/cooling coil/vacuum insulation (temperature difference ± 1 ℃)
Mixing demand: frequency conversion mixer (rotating speed adjustable)/baffle anti-vortex
Avoidance of redundancy: unnecessary functions increase costs and failure points
Cleaning and maintenance design
Quick dismantling structure | Worth |
CIP/SIP system | Automatic cleaning and sterilization, reducing manual intervention |
Quick dismantling structure | Easy replacement of sealing rings/sensors |
Inner wall polishing | Ra ≤ 0.8 μ m (to eliminate microbial residues) |
No blind spot welding | Laser welding is superior to bolted connections |
Although stainless steel storage tanks are essential industrial equipment, they play a key role in improving product quality, optimizing production processes, and ensuring safety. When selecting a storage tank, companies should not only focus on price but also comprehensively consider the material, workmanship, service, certifications, and application suitability.
For customized stainless steel storage tanks or professional selection solutions, please contact our technical team. We will recommend the most suitable storage tank system solution based on your process requirements.
