Designing a milk powder production line is a complex systems engineering task that requires striking an optimal balance among multiple, often competing, factors. Whether the line is intended for whole milk powder for the domestic market or skimmed milk powder for export, the quality of its design directly determines product quality, production costs, and market competitiveness. This article systematically outlines the key aspects of production line design—focusing on six core dimensions: production capacity, processing technology, energy consumption, hygiene, automation, and product type—to provide a professional reference for project planning.
Production capacity is the starting point for production line design and the fundamental parameter for equipment selection.
Capacity dictates the specifications and quantity of equipment across the entire chain, from raw milk intake to final packaging. A key calculation logic applies here: when processing 100 tons of fresh milk, the yield of whole milk powder (with a yield rate of approximately 13%) is about 13 tons, whereas the yield of skimmed milk powder (with a yield rate of approximately 9%) is only 9 tons. This means that if the target capacity is based on the tonnage of the finished product, a skimmed milk powder line must process a larger volume of raw milk, thereby requiring larger-scale pretreatment and concentration equipment.
The capacities of equipment at various stages must be aligned. For instance, the evaporation capacity of the spray drying tower must match the output concentration and flow rate of the upstream concentration equipment, while the speed of the downstream packaging line must be coordinated with the powder discharge rate of the drying tower. Insufficient capacity at any stage creates a bottleneck for the entire line, leading to equipment underutilization and wasted investment. Design plans typically incorporate a 10%–15% margin to accommodate production fluctuations and future capacity expansion needs.
The process route is central to production line design, with different product types requiring distinct processing paths.
The core process route for whole milk powder is: raw milk acceptance → milk clarification → standardization → pasteurization → concentration → spray drying → cooling and sifting → packaging. Due to its high fat content (≥26%), whole milk powder is prone to oxidative rancidity during storage; therefore, the packaging stage typically involves nitrogen flushing to displace oxygen and extend shelf life.
The process for skimmed milk powder builds upon the whole milk powder process but adds a centrifugal skimming step prior to pasteurization: raw milk acceptance → milk clarification → centrifugal skimming → standardization → pasteurization → concentration → spray drying → cooling and sifting → packaging. The cream separated during the skimming process can be sold as a high-value by-product (e.g., butter or cream), serving as a significant additional revenue stream.
Pasteurization temperature: Whole milk typically undergoes HTST pasteurization at 72–75°C for 15 seconds; skimmed milk, lacking the protective effect of fat, exhibits different thermal stability, requiring corresponding parameter adjustments.
Concentration endpoint: Prior to spray drying, milk solids must be concentrated from approximately 11–13% to 45–52% to reduce energy consumption during drying.
Drying control: The inlet air temperature (typically 160–200°C) and exhaust air temperature of the spray drying tower directly affect the moisture content of the final product and require precise control.
Milk powder production is a highly energy-intensive industry; the evaporation-concentration and spray-drying stages together account for over 80% of a plant's total energy consumption. Optimizing energy use is a key lever for reducing operating costs and achieving carbon neutrality goals.

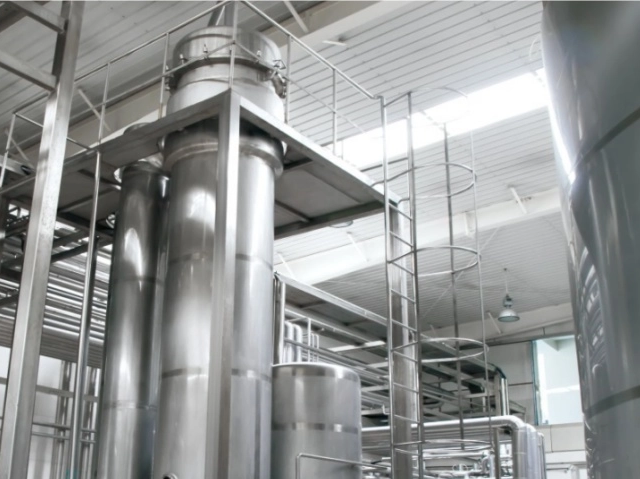

Modern production lines commonly employ multi-effect falling-film evaporators. Through multi-stage vacuum evaporation and the reuse of secondary steam, 1 kilogram of steam can theoretically evaporate 3–5 kilograms of water. For higher energy efficiency requirements, MVR (Mechanical Vapor Recompression) evaporators can be selected; by mechanically compressing and recovering the latent heat of secondary steam, they consume only one-third to one-half the energy of multi-effect evaporation systems.
Exhaust gas discharged from drying towers typically ranges from 80°C to 95°C, containing significant waste heat. Utilizing heat exchangers to transfer this waste heat to preheat intake air or boiler feed water can effectively reduce fuel consumption.
In recent years, the industry has explored a combined approach: "Reverse Osmosis (RO) Pre-concentration + High-solids Spray Drying." This process involves first using RO to concentrate milk solids from 13% to 30% (a very low-energy step), followed by further concentration to 60% via an evaporator, and finally spray drying. Studies indicate that this integrated solution can reduce thermal energy consumption by 51.5% and carbon emissions by 48.6%, representing the future direction of energy efficiency in milk powder production.
As a product intended for direct consumption or use as a food ingredient, the hygienic design of milk powder is critical to consumer health and corporate survival; it represents a non-negotiable "red line."
Production workshops must be strictly zoned based on cleanliness requirements, generally categorized as follows:
General processing areas: e.g., raw material warehouses
Semi-clean areas: e.g., pre-treatment, concentration, and drying areas
Clean processing areas: e.g., cooling, sifting, and packaging areas
Air cleanliness in the downstream packaging area must meet the Class 100,000 (ISO 8) standard; specific requirements must comply with GB 12693, the National Food Safety Standard – Good Manufacturing Practice for Dairy Products.
Hygienic Equipment Design Principles
All equipment surfaces in contact with materials must be made of food-grade stainless steel (e.g., SUS304 or SUS316L) with a surface roughness of Ra ≤ 0.8 μm. Structural designs must ensure:
No hygienic dead zones: Pipe connections should utilize quick-release fittings to facilitate disassembly and cleaning.
Self-draining design: Equipment and piping must have appropriate slopes to ensure no liquid remains after cleaning.
Reliable sealing: All rotating shaft seals and valve seals must prevent material leakage and microbial ingress.
Modern production lines are equipped with fully automated CIP systems capable of performing scheduled, program-controlled cleaning of equipment and piping without manual disassembly. The CIP system must include recovery and neutralization/discharge systems for acidic and alkaline cleaning solutions, balancing cleaning efficacy with environmental protection requirements.
The level of automation determines product quality stability, production efficiency, and labor costs. Automation in modern milk powder production lines has evolved from standalone machine control to integrated, end-to-end process control.
Closed-loop control for spray drying: By monitoring parameters such as exhaust air temperature, internal tower negative pressure, and feed flow rate in real-time, the system automatically adjusts inlet air temperature or feed rate to maintain the finished product's moisture content within a target range. Advanced control systems can reduce batch-to-batch moisture variation by over 50%, significantly enhancing product consistency.
Automated standardization and proportioning: During the standardization stage, real-time monitoring of fat content allows for the automatic adjustment of separator settings or ingredient valve openings, ensuring the fat content remains consistently within specified limits.
Automated CIP (Clean-in-Place) programming: The system automatically executes the entire cleaning, rinsing, and disinfection process according to preset programs and logs cleaning parameters for traceability purposes.
A central control room enables integrated monitoring and data acquisition (SCADA) for the entire production line—from milk intake to final packaging—allowing operators to oversee the operational status of the whole line from a computer terminal. Simultaneously, the system automatically generates batch production records, ensuring full traceability from raw materials to the finished product and meeting regulatory requirements for food safety traceability.
Product type is the starting point for determining the design parameters of all other dimensions. Within the specific scope of whole and skimmed milk powders, the differences manifest as follows:
Comparison Item | Whole milk powder | Skimmed milk powder |
Fat Content | ≥26% | ≤2% |
Process Differences | No skimming process required | Requires centrifugal separation for skimming |
Packaging Requirements | Nitrogen-flushed packaging required to prevent oxidation | Standard packaging; shelf-stable |
Yield (per 100L of milk) | Approx. 13 kg | Approx. 9 kg |
By-products | None (or trace amounts) | Cream (can be processed into butter) |
Target Market | Retail, food service, reconstituted milk | Industrial raw material, baking, reconstituted milk |
If a single production line is intended to switch between two products, the separator must be designed with a bypass capability: the milk flows directly downstream without passing through the separator when producing whole milk powder, whereas the separator is engaged when producing skimmed milk powder. This design strikes a balance between flexibility and investment costs, though thorough cleaning is required during product switching to prevent cross-contamination. If production volumes for both product types are high, separate dedicated lines—each optimized for its specific product—may be considered; while this entails higher initial investment, it offers superior operational efficiency.
Designing a milk powder production line is essentially a process of systematically balancing six key dimensions: production capacity, processing technology, energy consumption, hygiene, automation, and product type. Production capacity defines the scale of the equipment; processing technology outlines the production workflow; energy consumption impacts long-term operating costs; hygiene represents a non-negotiable safety baseline; automation determines product consistency and labor efficiency; and product type serves as the starting point for the entire design. Only by integrating and holistically considering these six dimensions can one design a milk powder production line that is technologically advanced, economically viable, and reliable in quality. It is recommended to collaborate with experienced dairy engineering firms on customized designs during project implementation to ensure efficient execution and long-term operational success.
