For more than a century, carbonated soft drinks (CSDs) have been a staple in the global beverage industry.
CSD (Carbonated Soft Drink) production lines are automated industrial systems specifically designed to produce beverages containing carbon dioxide gas (such as cola, Sprite, soda, etc.). Its core goal is to mix, fill, and seal raw materials such as water, syrup, and CO₂ through standardized processes to ultimately form commercially packaged carbonated beverages. This article mainly introduces the five core steps of the CSD carbonated beverage production line in detail.
The raw material processing of CSD production line mainly includes the purification and blending of water, syrup, and CO ₂: firstly, the raw material water is subjected to multi-stage filtration (quartz sand, activated carbon), softening and desalination (reverse osmosis), and sterilization and cooling (below 4 ℃); At the same time, the white granulated sugar is dissolved and filtered, added with acid flavor agent, essence, etc. to prepare syrup and pasteurized; Food grade CO ₂ needs to be purified and dried to remove impurities. All raw materials must meet strict standards after processing, providing a high-purity foundation for subsequent carbonation mixing. All raw materials must meet strict standards after processing to provide a high-purity basis for subsequent carbonation mixing.

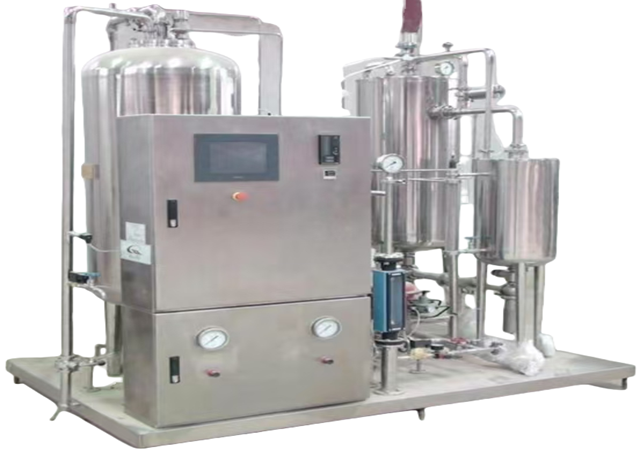

Carbonation gives beverages unique bubbles and is a key step in making soft drinks. In the carbonation mixing stage, the processed syrup, water, and purified CO ₂ are precisely mixed at a pressure of 3-5 bar and cooled to 1-4 ℃ to form a carbonated beverage (GV value 3.0-4.5). The entire process is monitored in real-time through a PLC system to ensure that the bubbles are delicate, long-lasting, and have consistent flavor, including temperature, pressure, and gas content.
Once the beverage is carbonated, it enters the filling stage. CSD machines use high-precision filling nozzles to dispense the correct amount of liquid into each bottle or can. The process must be carried out under controlled pressure to prevent carbonation loss. After filling, the bottle or can is immediately capped and sealed to maintain carbonation and freshness. This step is automated in modern CSD machines, which use bottle caps or pull rings. This machine ensures a tight, leak-proof seal.
Packaging and quality inspection are the final links of the CSD production line, and finished product processing and quality control are completed through fully automated equipment: the filled beverage is sent to the labeling machine via a conveyor belt to accurately paste the label (error ≤ 0.5mm), laser code prints production information, and then automatically packs and palletizes; online quality inspection is carried out simultaneously, including weighing and rejection, metal detection, sealing test, and sampling and testing of CO₂ content and microbial indicators to ensure that each batch of products meets food safety standards before entering storage and circulation.
CIP cleaning is an automatic cleaning system for CSD production lines. It cleans pipeline equipment by circulating alkali, aci,d, and hot water. It can completely sterilize and decontaminate without disassembly, ensuring production hygiene and safety.
