What are the different types of CIP system

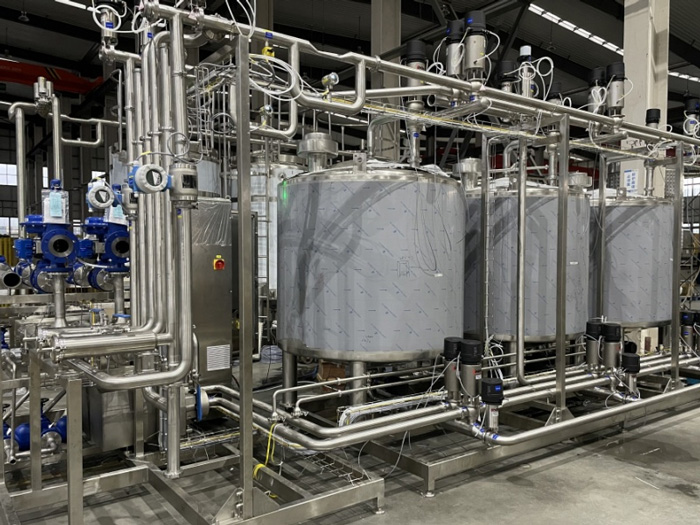

The CIP system, which is another name for the in-situ cleaning system, is a common method used to clean production line equipment right where it stands. It's especially favored in the food, beverage, and pharmaceutical sectors. This system works by connecting pipelines, pumps, tanks, and other essential production parts, like sterilizers and filling machines, to form a loop. This loop then pumps a range of cleaning and rinsing solutions at various temperatures through the equipment, effectively soaking, separating, and removing any residue, dirt, or sediment that might be present.  CIP systems come in various types, and they can be classified based on different criteria:

Integrated CIP systems bring all the cleaning equipment together into a compact unit. These systems are great for small production lines and spaces with limited room.

Split CIP systems have their components, like CIP tanks, pumps, and heat exchangers, installed separately and connected through pipelines. This setup offers high flexibility and can be tailored to the actual layout of the production site.

Steam heating CIP systems use steam to heat the cleaning solution. While steam heating is fast and provides uniform temperature, it may require extra equipment like boilers.

Electric heating CIP systems heat the cleaning solution using electric heating elements. They're easy to operate and offer temperature control, but they consume more energy. They're suitable for smaller CIP systems.

Manual control of CIP systems requires operators to manually adjust cleaning parameters like temperature, pressure, and flow rate. While this offers high flexibility, it can be complex and demands skilled operators.

Semi-automatic control CIP systems have some automation features, like automatic temperature adjustment and cleaning concentration monitoring. They reduce the workload on operators and improve cleaning efficiency.

Fully automatic control CIP systems control the entire cleaning process through preset programs, including cleaning solution preparation, heating, circulation, and disposal. They offer high automation, reduce human intervention, and ensure consistent and reliable cleaning.

CIP systems that use cleaning agents only once have simpler equipment but consume a lot of cleaning agents.

CIP systems that reuse cleaning agents recover and reuse the cleaning solution, adjusting the concentration by adding acid, alkali, etc. They save cleaning agents but have more complex equipment.

CIP systems with multiple uses of cleaning agents combine the best of both worlds. They prepare and recover cleaning agents through small, local standard units. These systems are flexible and efficient, making them suitable for various production environments..

In conclusion, there are many types of CIP systems, each with its own unique advantages and applications. When choosing a CIP system, consider factors like production needs, site conditions, and cost budgets to find the one that best fits your production environment.
