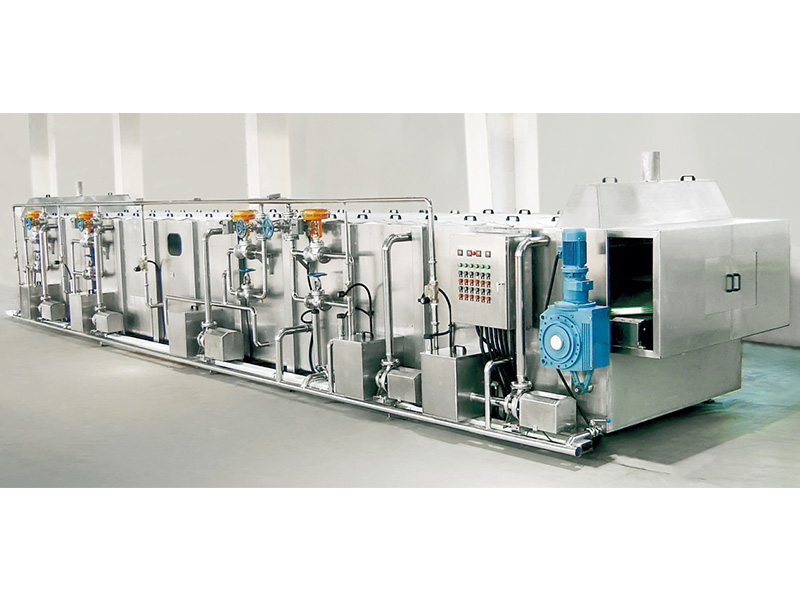

This equipment is mainly used to secondary sterilization of food which filled in cans, glass bottle or PET bottle. Preheat, sterilization, pre-cooling, cooling, drying is optional configuration. Sterilization temperature can be controlled. Carrying out segmentation sterilization ensure that the container does not break and sterilization quality. The heating mode could be steam heating or electric heating, spray nozzle uses a special atomizer, uniform automation spraying in the packing container, to prevent damage to packaging containers, the machine to achieve automation into the bottle and out the bottle, to achieve a fully automated production line. The material of machine body is SUS304
| Main technical parameters | ||||
| Model | CHFL-6000 | CHPL-8000 | CHPL-12000 | CHPL-16000 |
| Capacity(b/h) | 2000-3000 | 3000-4000 | 5000-6000 | 8000-10000 |
| Sterilizing temperature(℃) | <100 | <100 | <100 | <100 |
| Sterilizing time (min) | 15-30 | 15-30 | 15-30 | 15-30 |
| Deliver speed | 100-550 | 100-550 | 100-550 | 100-550 |
| Width of bell(m) | 1.05 | 1.05 | 1.05 | 1.05 |
| Pressure of steam main pipe(Mpa) | <0.4 | <0.4 | <0.4 | <0.4 |
| Circular water volume(m3/h) | 6 | 9 | 15 | 28 |
| Steam consumption(kg/h) | 80 | 120 | 250 | 280 |
| Motor power(kw) | 14.5KW | 18.5KW | 21KW | 25KW |
| Size(mm) | 6000×1200×1600 | 8000×1200×1600 | 12000×1200×1600 | 16000× 1200×1600 |
| Weight | 2500 | 3200 | 4300 | 5600 |
